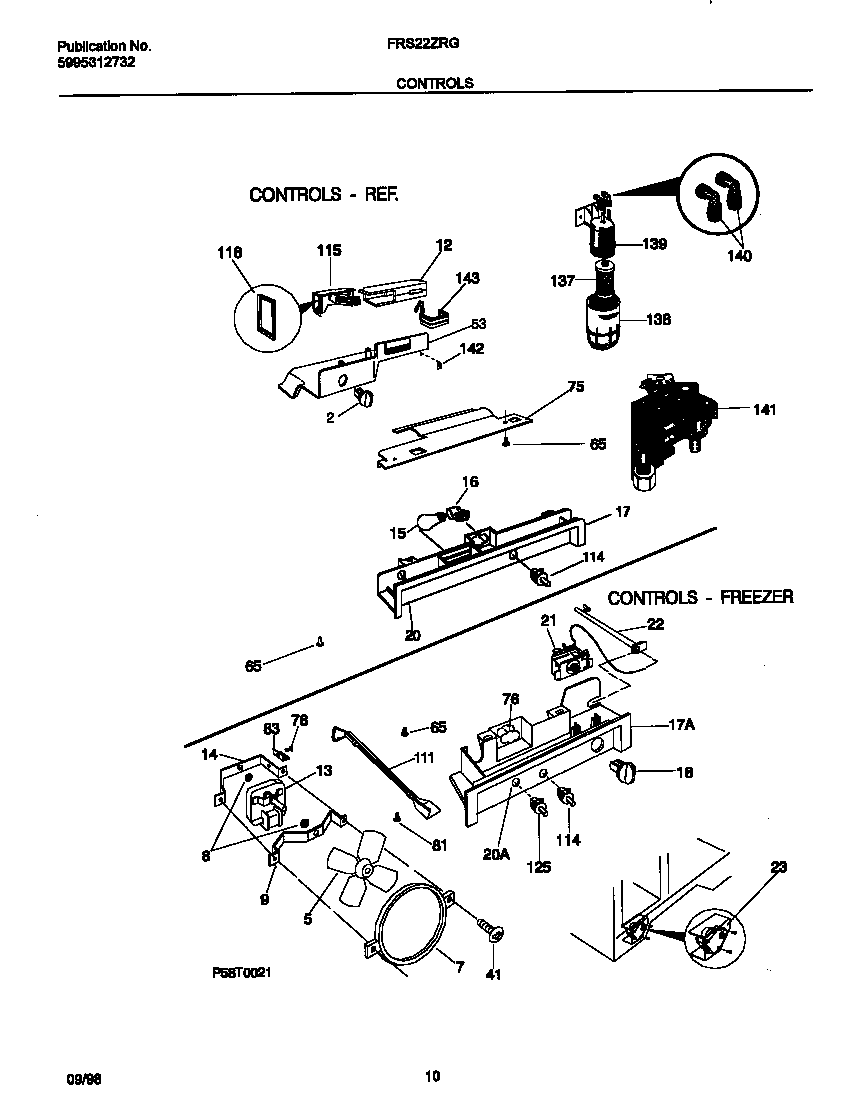

FRS22ZRGB2 06 – CONTROLS

FRS22ZRGB2 06 – CONTROLS

Written by

in

FRS22ZRGB2 06 – CONTROLS

Products

PositionProduct
*462655304455649 Frigidaire Refrigerator Screw
*46269WIRING HARNESS,FILTER HEATER
*46266SHIELD-DEFROST TIMR,BTM
*46263WCI 218731102
*46270218710300 Frigidaire Refrigerator Water Filter Wrench
*46267NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*46268Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
*46262215474201 Frigidaire Refrigerator Washer
*46264COVER-DEFROST TIMER, TOP
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17CONTROL BOX, FRZR
17WCI 5303296805
18WCI 5303308568
20WCI 5304405630
20BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
20AWCI 5303308611
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809510
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011503
116WCI 215011400
137WCI 215334201
138WCI 218657401
139HOUSING-WTR FILTER
140WCI 218518700
141VALVE-WATER,DUAL SOLENOID ,115 V ,W/NUT
142WCI 218657701
143WCI 218696700
