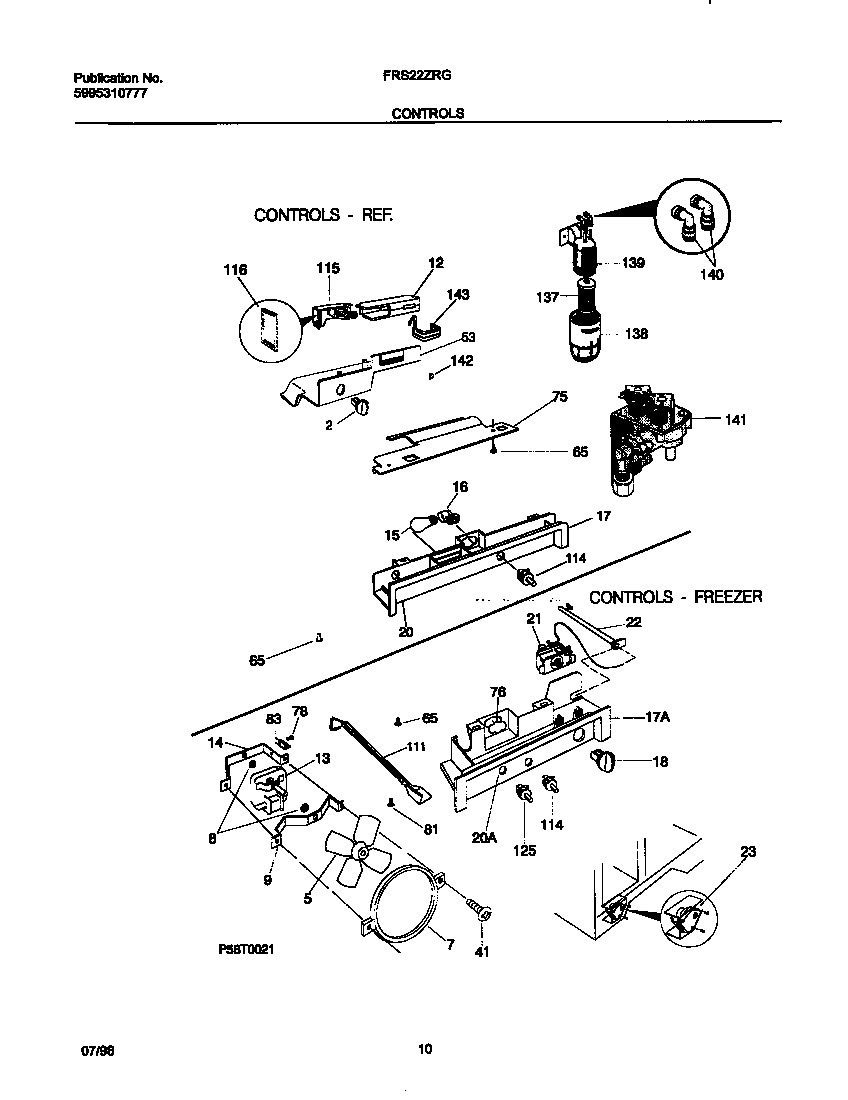

FRS22ZRGW1 06 – CONTROLS

FRS22ZRGW1 06 – CONTROLS

Written by

in

FRS22ZRGW1 06 – CONTROLS

Products

PositionProduct
*00784Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
*00790WCI 5303015259
*00787215474201 Frigidaire Refrigerator Washer
*00789COVER-DEFROST TIMER, TOP
*00791SHIELD-DEFROST TIMR,BTM
*00788WCI 218731102
*00786218710300 Frigidaire Refrigerator Water Filter Wrench
*00792NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*00785WIRING HARNESS,FILTER HEATER
2WCI 215028605
5WCI 5308000150
7WCI 5308001524
8WCI 5301537666
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15WCI 5303015179
16241559801 Frigidaire Light Socket Refrigerator
17WCI 5303296805
17CONTROL BOX, FRZR
18WCI 5303308568
20WCI 5304405630
20BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
20AWCI 5303308611
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809510
65BRACKET-VALVE TO REAR PNL
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308015307
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011503
116WCI 215011400
137WCI 215334201
140WCI 218518700
141VALVE-WATER,DUAL SOLENOID ,115 V ,W/NUT
142WCI 218657701
143WCI 218696700
