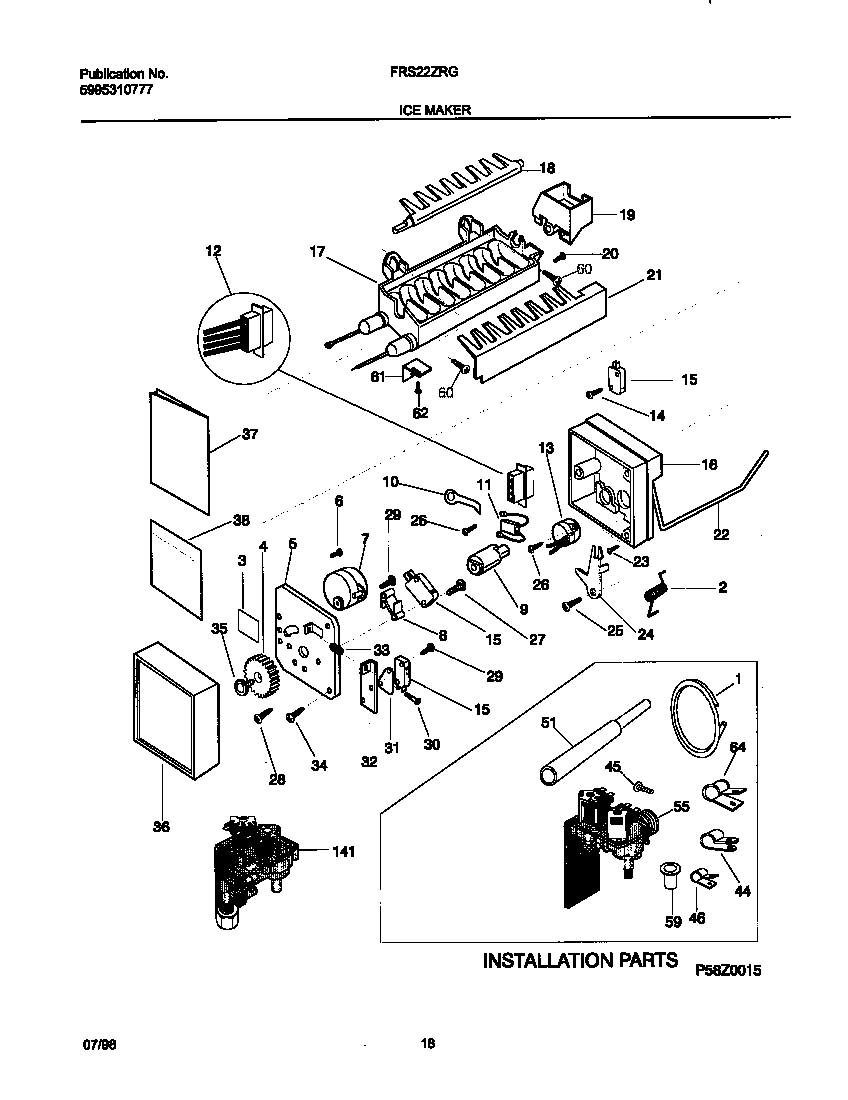

FRS22ZRGW1 10 – ICE MAKER

FRS22ZRGW1 10 – ICE MAKER

Written by

in

FRS22ZRGW1 10 – ICE MAKER

Products

PositionProduct
*00818WCI 218703400
*00824WCI 218731600
*00819WCI 218770401
*00827218859701 Frigidaire Water Valve Single Solenoid
*00820PLUG, “ONLY“
*00822Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
*00826NUT, 7/16 X 20, NYLON
*00817TUBE-WATER INLET,FILTER ,TO FILTER VALVE,W/ELBOW
*00821WCI 218873013
*008235303918277 Frigidaire Refrigerator Ice Maker Assembly
*00825WCI 218836401
15308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2WCI 3206348
3Label,ID plate
45304469403 Frigidaire Gear
5WCI 3206303
6218359202 Frigidaire Refrigerator Screw
8SPACER-HOLD SWITCH
9WCI 3206313
10WCI 3206315
113206319 Frigidaire Refrigerator Thermal Cut-Off Assembly P1
12HARNESS-WIRING, INTERNAL IM, WITH PLUG
13Thermostat Assy,ice maker
14SCREW,4-24 X 0.750 ,(6)
155304456667 Frigidaire Refrigerator Micro Switch
16WCI 3206326
17241798231 Frigidaire Refrigerator Ice Maker Assembly
18EJECTOR-ICE
19WCI 3206330
20WCI 3206331
21ICE STRIPPER
22SHUT-OFF ARM
23SCREW – SUP / MOLD BODY, 8-18 X 1, (4)
245304456675 Frigidaire Refrigerator Lever Arm
25SCREW,8-18 X 0.562 ,LEVER ARM/SPRT
26SCREW-THERMO/SPRT, 4-24 X 3/8, (4)
27SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,
28Screw-timing stop`4-40 x 0.375
29SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4)
30SCREW-TIMING ADJ,8-32 X 1.000
31WCI 3206342
32WCI 3206343
33WCI 3206344
34SCREW – MTG PLATE / SPRT, 8-18 X 7/16, (3)
35SCREW – GEAR / CAM, 6-20 X 0.437
36COVER-ICE MAKER
37WCI 5303320544
38WCI 5303207445
445308000133 Frigidaire Refrigerator Clamp
45WCI 5303015343
46WCI 5303013193
47WCI 5308000205
51WCI 215811600
55218832401 Frigidaire Water Inlet Valve
59WCI 5303013191
605304455852 Frigidaire Refrigerator Screw
61218721500 Frigidaire Refrigerator Bracket-Leveling
62240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
64WCI 5303013349
