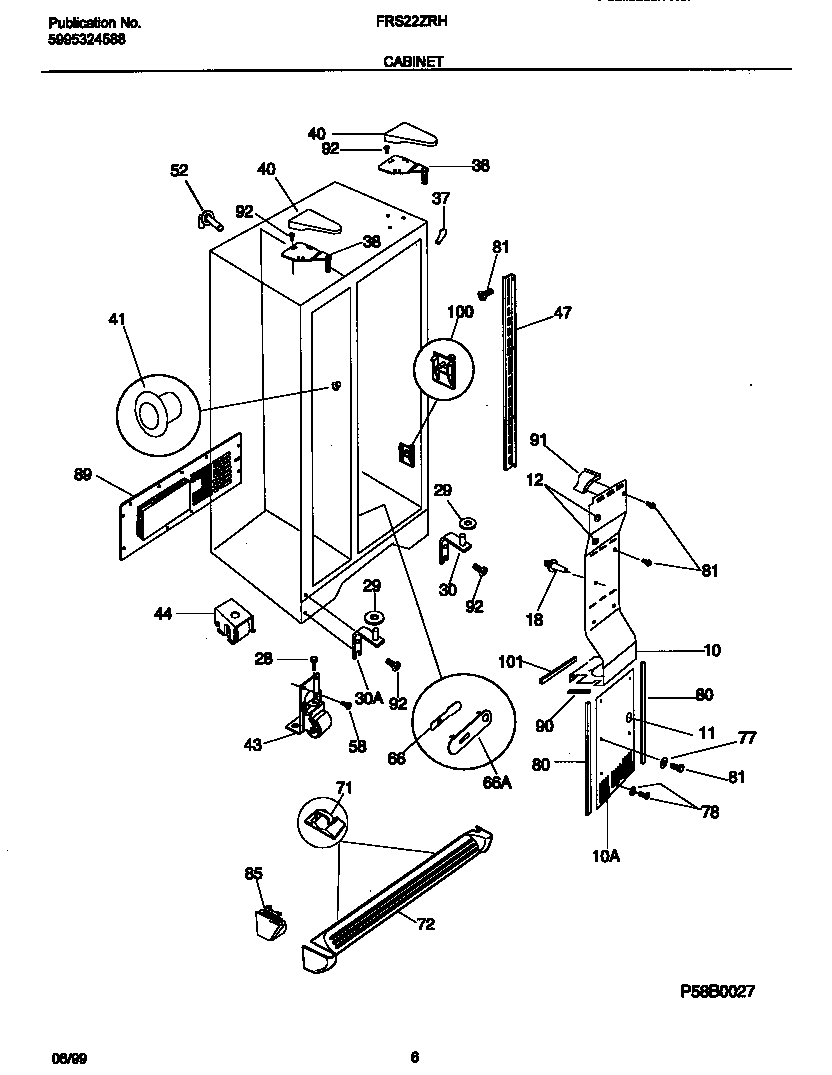

FRS22ZRHD0 04 – CABINET

FRS22ZRHD0 04 – CABINET

Written by

in

FRS22ZRHD0 04 – CABINET

Products

PositionProduct
*52609WCI 5303322647
*52605WCI 218871201
*52610WCI 218902101
*52606WCI 218730800
*52604WCI 215314301
*52611WASHER, .28 X .62 X .19, NYLON
*52608SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*52603SUPPORT-AIR DUCT CVR,1.83“ LONG
*52613TOUCH, UP PAINT, ALMOND (NI)
*526075304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215598900
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
30BWCI 218730700
37WCI 5303321082
38BWCI 218215223
38AWCI 218215221
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359803
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
