FRS22ZRHD3 04 – CABINET

FRS22ZRHD3 04 – CABINET

Written by

in

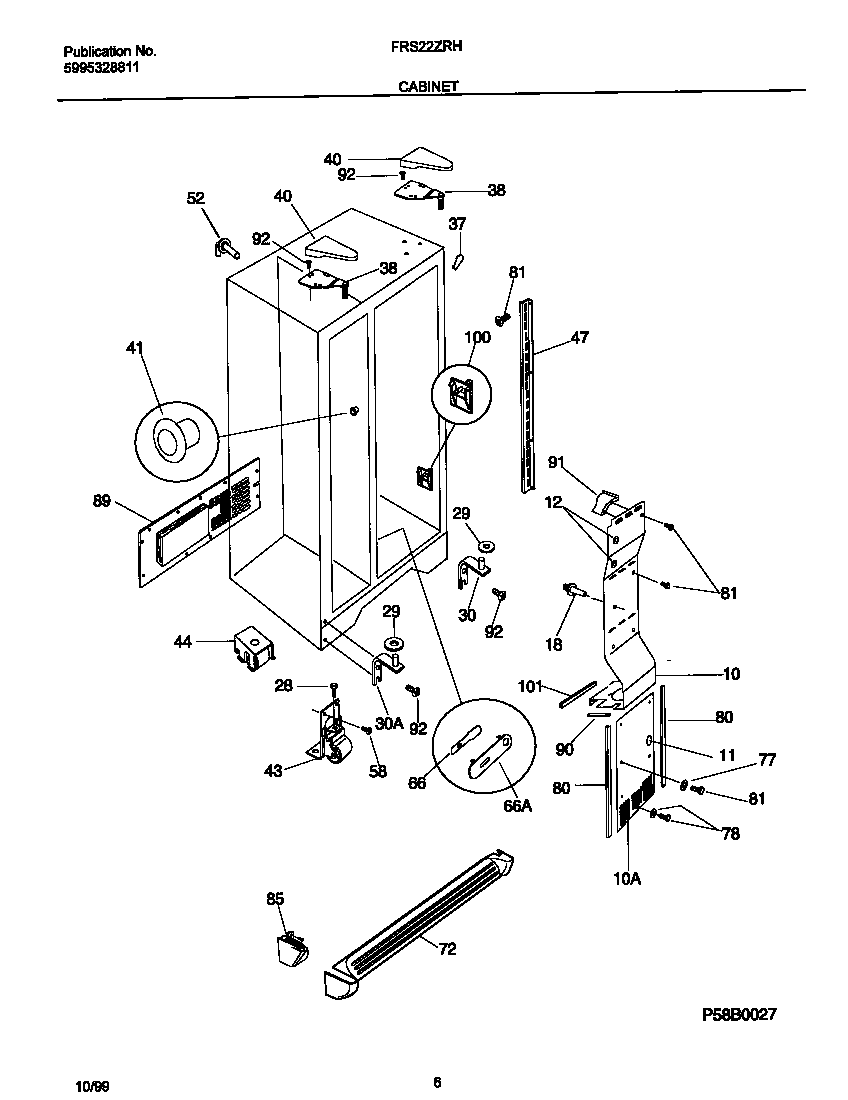

FRS22ZRHD3 04 – CABINET

Products

PositionProduct
*96330WCI 5303322647
*96332WASHER, .28 X .62 X .19, NYLON
*96329SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*96326WCI 218871201
*96324SUPPORT-AIR DUCT CVR,1.83“ LONG
*96323NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*96333TOUCH, UP PAINT, ALMOND (NI)
*96331WCI 218902101
*963285304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*96327WCI 218730800
*96325WCI 215314301
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215598900
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30BWCI 218730700
30AWCI 215009000
37WCI 5303321082
38AWCI 218215221
38BWCI 218215223
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922703
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
