FRS22ZRHD3 07 – SYSTEM

FRS22ZRHD3 07 – SYSTEM

Written by

in

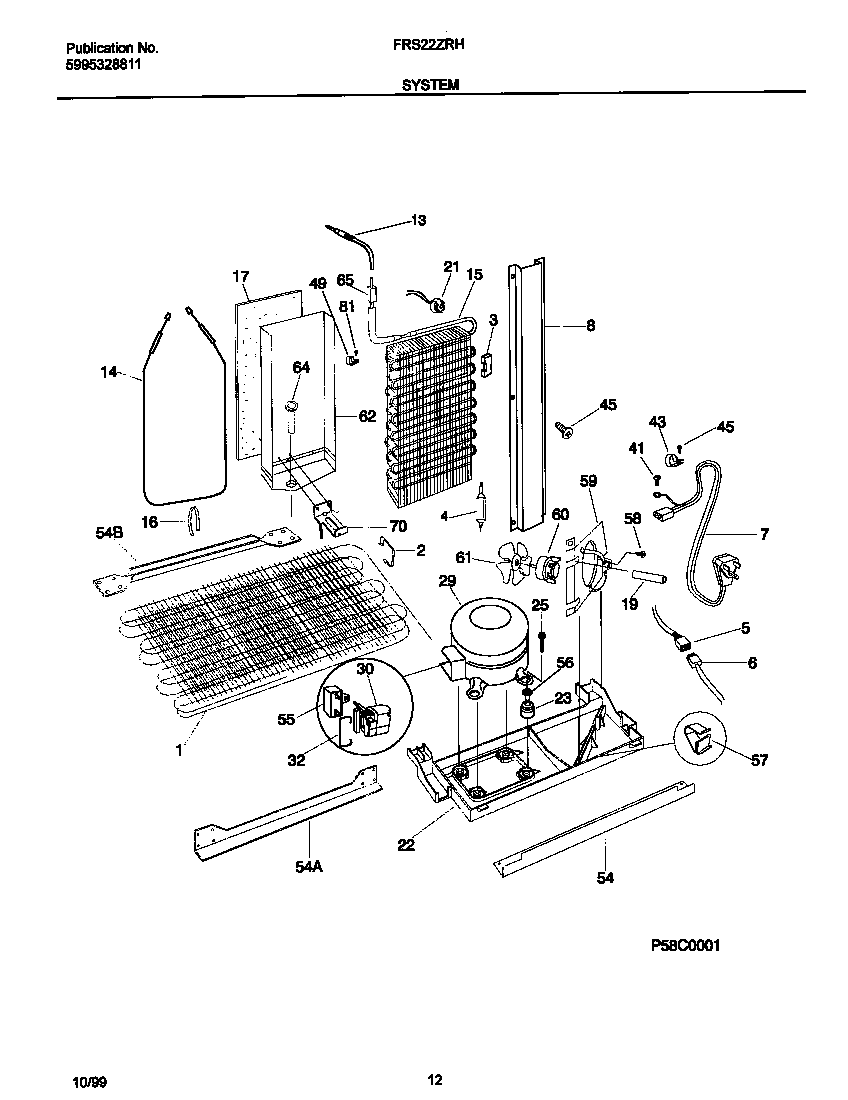

FRS22ZRHD3 07 – SYSTEM

Products

PositionProduct
*96361WCI 215004800
*96348SPACER TUBE
*963555308000133 Frigidaire Refrigerator Clamp
*96351WIRING HARNESS,FILTER HEATER
*96350WIRING HARNESS,REFR CONTROLS
*96347SPACER-COND TUBE,BLACK
*96349WCI 5304406721
*96352WIRING HARNESS,FRZR CONTROLS
*96358WCI 215732700
*96362HOT TUBE REPAIR KIT, SERVICE
*963575304455852 Frigidaire Refrigerator Screw
*96359WCI 218897001
*96360WCI 215004700
*96356WCI 218769200
*96353TUBE-INLET (NOT ILLUSTRATED)
1WCI 218787800
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960201
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
305304491583 Frigidaire Freezer Compressor Start Relay & Overload Controller Kit
32CLAMP,ELEC CONT MTG ,COMPRESSOR
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289292
54WCI 5303289311
54WCI 5303289027
55WCI 218909902
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
