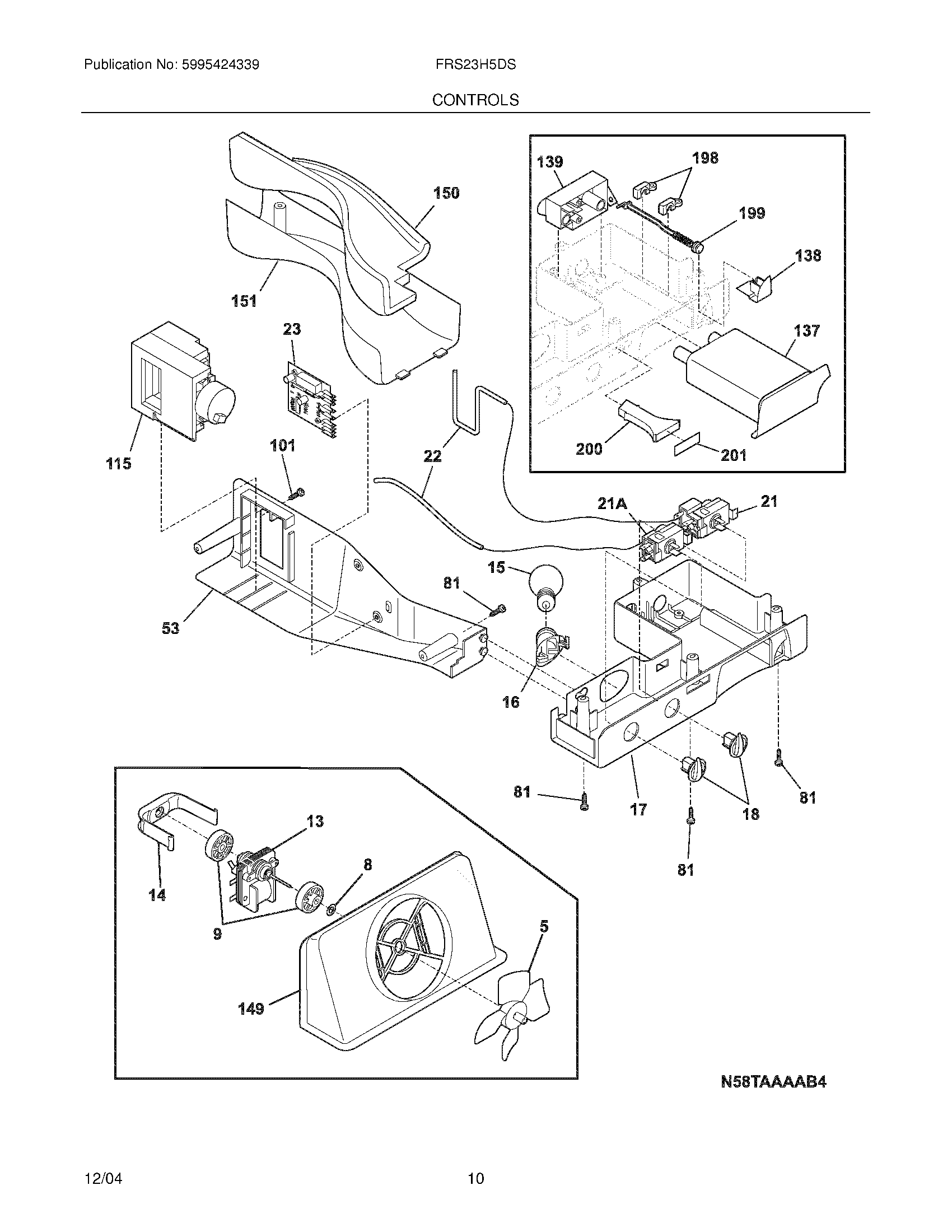

FRS23H5DSB9 11 – CONTROLS

Products

Position	Product
NI	5304455649 Frigidaire Refrigerator Screw
NI	WCI 241537802
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241563601 Frigidaire Refrigerator Motor Mounting Bushing
13	EVAP MOTOR KIT
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17	WCI 240374901
18	Knob-control
21A	5304496561 Frigidaire Refrigerator Cold Temperature Control Thermostat
21	241537104 Frigidaire Refrigerator Thermostat
22	218660704 Frigidaire Refrigerator Tube-Insulator
23	WCI 241508001
53	240369501 Frigidaire Refrigerator Control Box
81	5304455650 Frigidaire Refrigerator Screw
101	218493101 Frigidaire Refrigerator Screw
115	241600902 Frigidaire Refrigerator Damper Control Assembly
137	WATER FILTER PURESOURCE 2
137	242227702 Frigidaire Refrigerator Bypass Water Filter
138	WCI 240397301
139	240396002 Frigidaire Refrigerator Primary Base Water Filter
139	240527001 Frigidaire Refrigerator O-Ring N
149	241528303 Frigidaire Refrigerator Seal
149	242204505 Frigidaire Refrigerator Shroud
150	WCI 240394203
151	WCI 240373805
198	240397401 Frigidaire Refrigerator Retainer Assembly
199	240398401 Frigidaire Refrigerator Filter Release Spring
199	WCI 240397501
200	WCI 240397601
201	WCI 240398501
