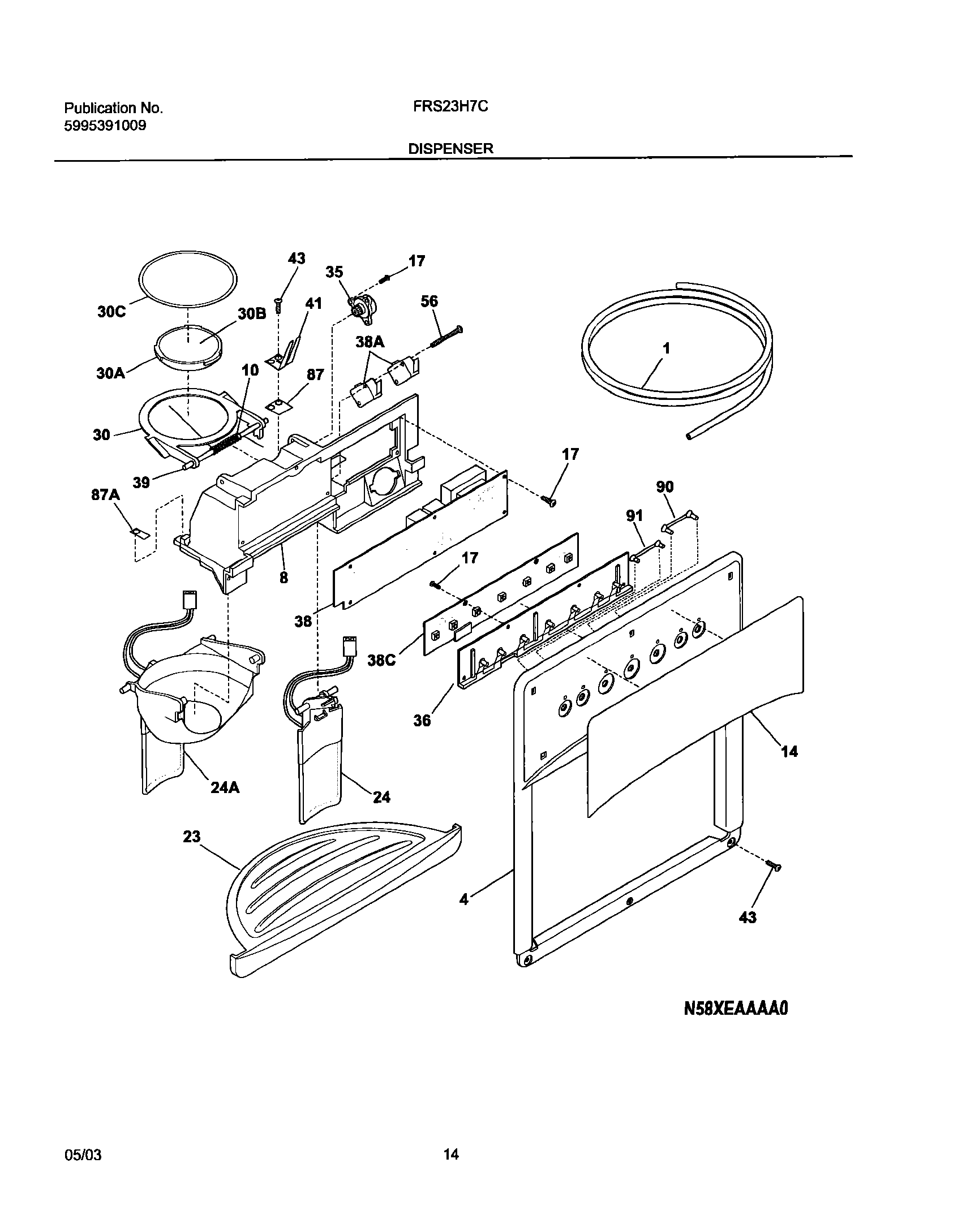

FRS23H7CQ0 15 – DISPENSER

FRS23H7CQ0 15 – DISPENSER

Written by

in

FRS23H7CQ0 15 – DISPENSER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NIWCI 218976907
NI5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NIWCI 5304426535
1218976409 Frigidaire Refrigerator Water Tube
4WCI 5304421848
8WCI 5304433617
10241688901 Frigidaire Refrigerator Torsion Spring
14WCI 240323978
17241679801 Frigidaire Screw
23241649003 Frigidaire Refrigerator Drip Tray
24WCI 5304433614
24AWCI 5304433611
30A241688501 Frigidaire Refrigerator Door Center
30241688401 Frigidaire Ice Door Bracket
30C241688701 Frigidaire Refrigerator Door Seal
30B241688601 Frigidaire Refrigerator Door Insulation
35241689301 Frigidaire Refrigerator Rotary Damper
36WCI 5304421824
38A241689106 Frigidaire Refrigerator Micro Switch
38C241708306 Frigidaire Refrigerator Control Board
38CWCI 5304430811
38WCI 5304433619
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296300
56241689201 Frigidaire Refrigerator Screw-Micro Switch
87241688302 Frigidaire Refrigerator Bearing Plate
87A241688301 Frigidaire Refrigerator Bearing Plate
90WCI 5304421831
91WCI 5304421850
