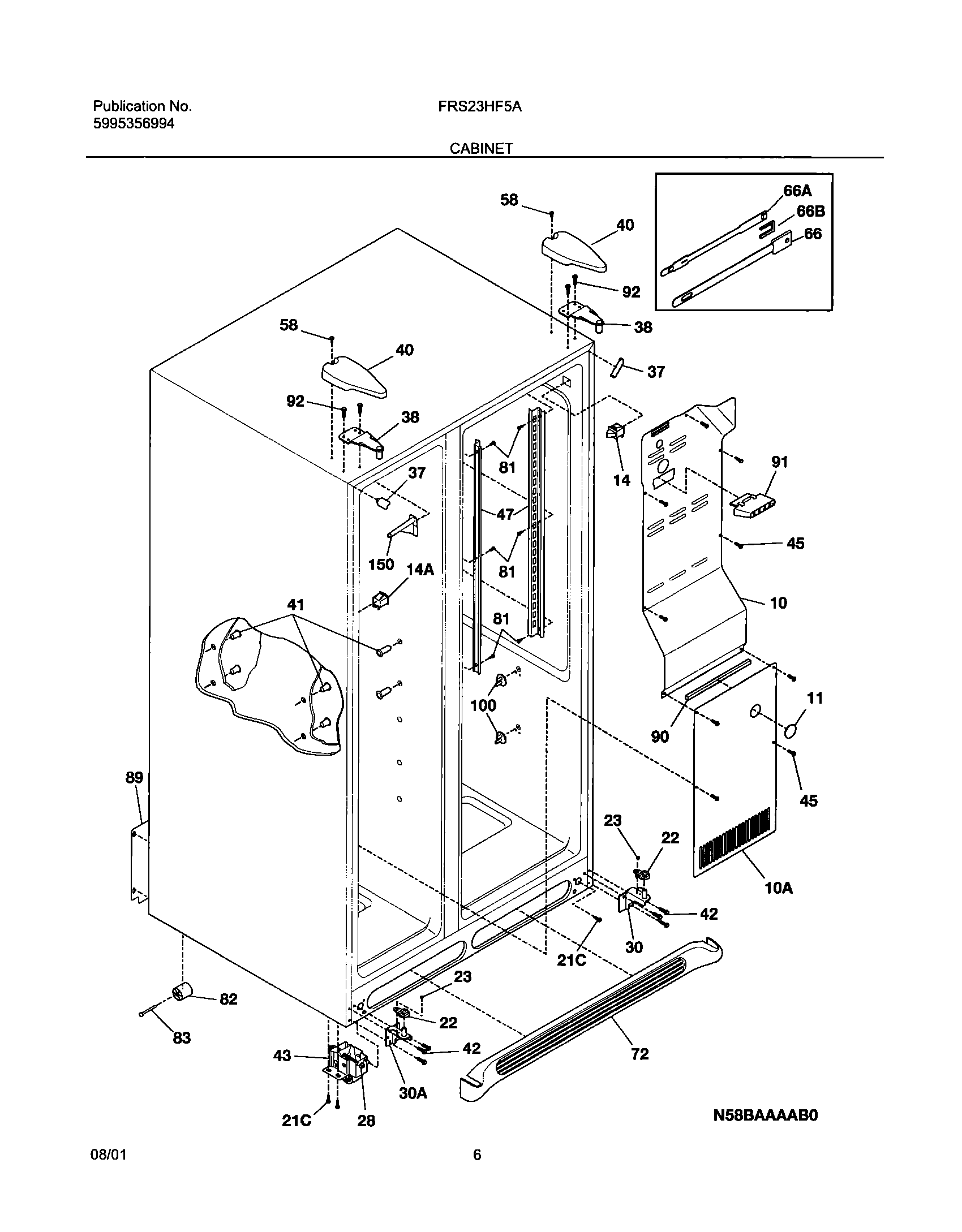

FRS23HF5AB1 07 – CABINET

Written by

Products

Position	Product
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
10A	241719710 Frigidaire Refrigerator Cover-Evaporator
10	WCI 240435901
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
14	240505801 Frigidaire Light Switch
21C	218252201 Frigidaire Refrigerator Screw
22	240457701 Frigidaire Refrigerator Freezer Door Closing Cam Stop
23	WCI 240402701
30	5303918455 Frigidaire Refrigerator Adjustable Hinge Kit
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	240327207 Frigidaire Refrigerator Bracket Upper Hinge
40	240327007 Frigidaire Refrigerator P-1 Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	WCI 240349401
58	Screw,No.10 pan hd ,8-18 x .5
66	WCI 240470201
66A	WCI 240470301
66B	WCI 240355901
72	241521603 Frigidaire Refrigerator Grill/Kickplate
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	WCI 240326103
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
91	240380101 Frigidaire Refrigerator Ice Maker Duct
92	241710601 Frigidaire Refrigerator Screw
100	CRISPER COVER SUPPORT
100	241993001 Frigidaire Refrigerator Left Crisper Cover Support
150	WCI 240368701
