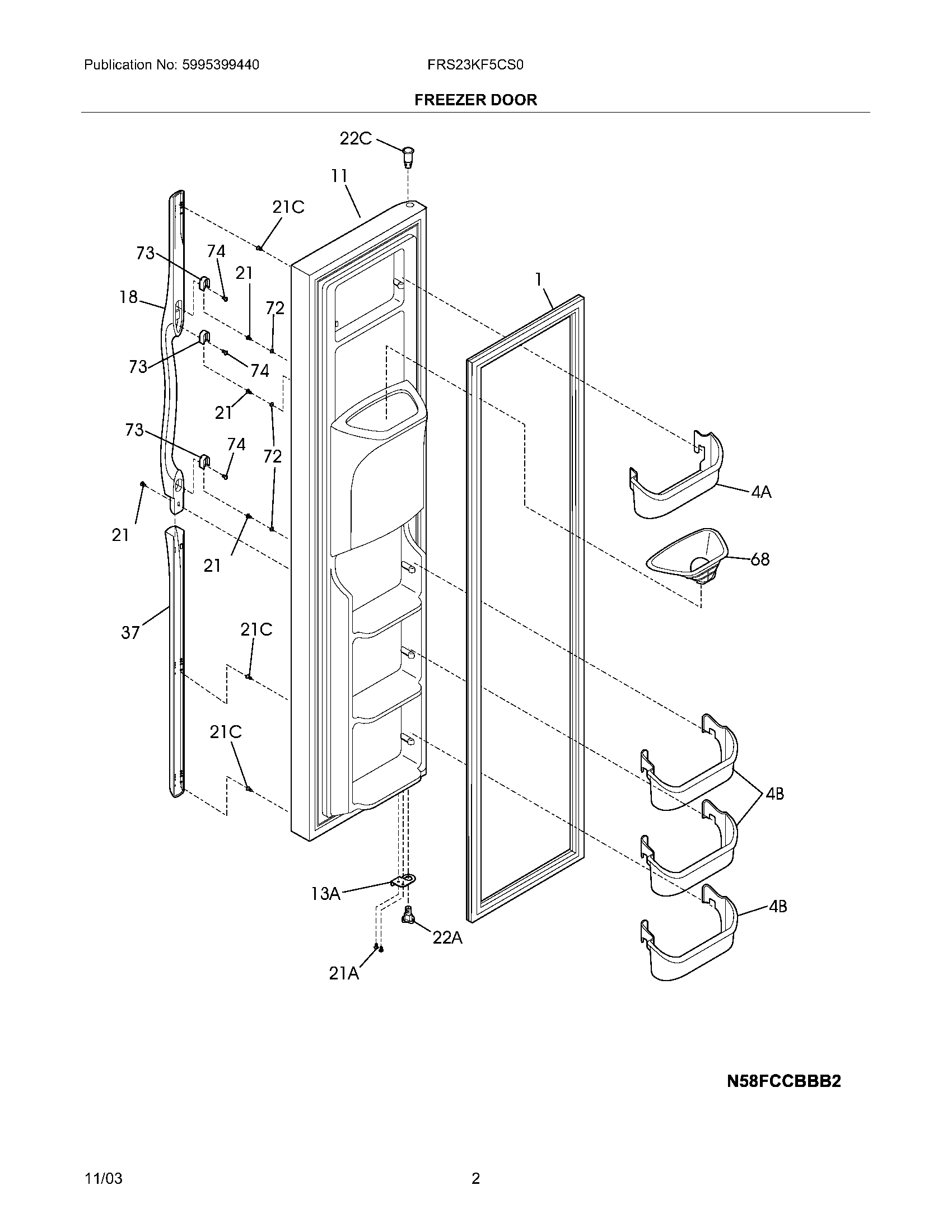

FRS23KF5CS0 03 – FREEZER DOOR

FRS23KF5CS0 03 – FREEZER DOOR

Written by

in

FRS23KF5CS0 03 – FREEZER DOOR

Products

PositionProduct
NIWCI 218490900
NI5304521763 Frigidaire Refrigerator Wiring Harness
NI5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI240545201 Frigidaire Refrigerator Elbow P-1
1241786008 Frigidaire Refrigerator Gasket
4A240367301 Frigidaire Refrigerator Door Bin
4B240359001 Frigidaire Refrigerator White Door Shelf Bin
11WCI 240554231
13A240581906 Frigidaire Refrigerator Door Stop
18Handle-door,black
21CWCI 240521302
21A240598402 Frigidaire Refrigerator Screw
21218781101 Frigidaire Handle Screw
22A242000501 Frigidaire Refrigerator Hinge Bearing
22C240328404 Frigidaire Refrigerator Upper Door Hinge Bearing
37WCI 240359203
68241525101 Frigidaire Refrigerator Chute-Ice
72WCI 240421701
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
