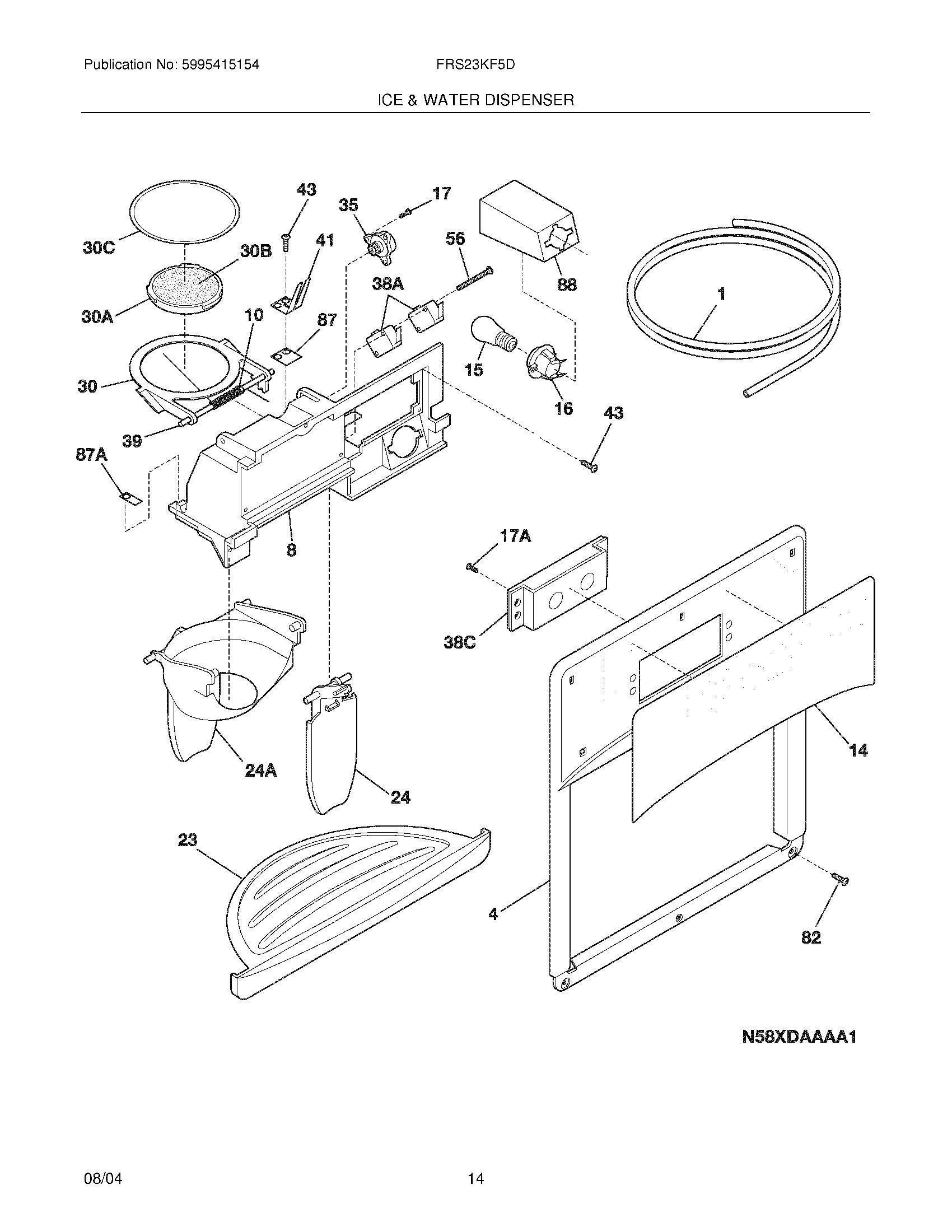

FRS23KF5DQ1 15 – ICE &WATER DISPENSER

FRS23KF5DQ1 15 – ICE &WATER DISPENSER

Written by

in

FRS23KF5DQ1 15 – ICE &WATER DISPENSER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI240561701 Frigidaire Refrigerator Seal
NI218515401 Frigidaire Refrigerator Clip
NIWCI 218976907
NI218976903 Frigidaire Refrigerator Water Inlet Tube P-1
1218976409 Frigidaire Refrigerator Water Tube
4WCI 5304433187
8WCI 5304421849
10241688901 Frigidaire Refrigerator Torsion Spring
14WCI 240570205
15Light Bulb/Lamp
16240548901 Frigidaire Refrigerator P-1 Socket
17241679801 Frigidaire Screw
17A241679901 Frigidaire Refrigerator Screw
23241649003 Frigidaire Refrigerator Drip Tray
245304493021 Frigidaire Refrigerator Actuator Kit
30C241688701 Frigidaire Refrigerator Door Seal
30B241688601 Frigidaire Refrigerator Door Insulation
30A241688501 Frigidaire Refrigerator Door Center
30241688401 Frigidaire Ice Door Bracket
35241689301 Frigidaire Refrigerator Rotary Damper
38C5304525097 Frigidaire Refrigerator 4 Button Switch Assembly
38A241689106 Frigidaire Refrigerator Micro Switch
38A241679201 Frigidaire Refrigerator Wiring Harness
38C5304521693 Frigidaire Refrigerator Harness-Facade W/Li
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296300
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87A241688301 Frigidaire Refrigerator Bearing Plate
87241688302 Frigidaire Refrigerator Bearing Plate
88WCI 5304421615
