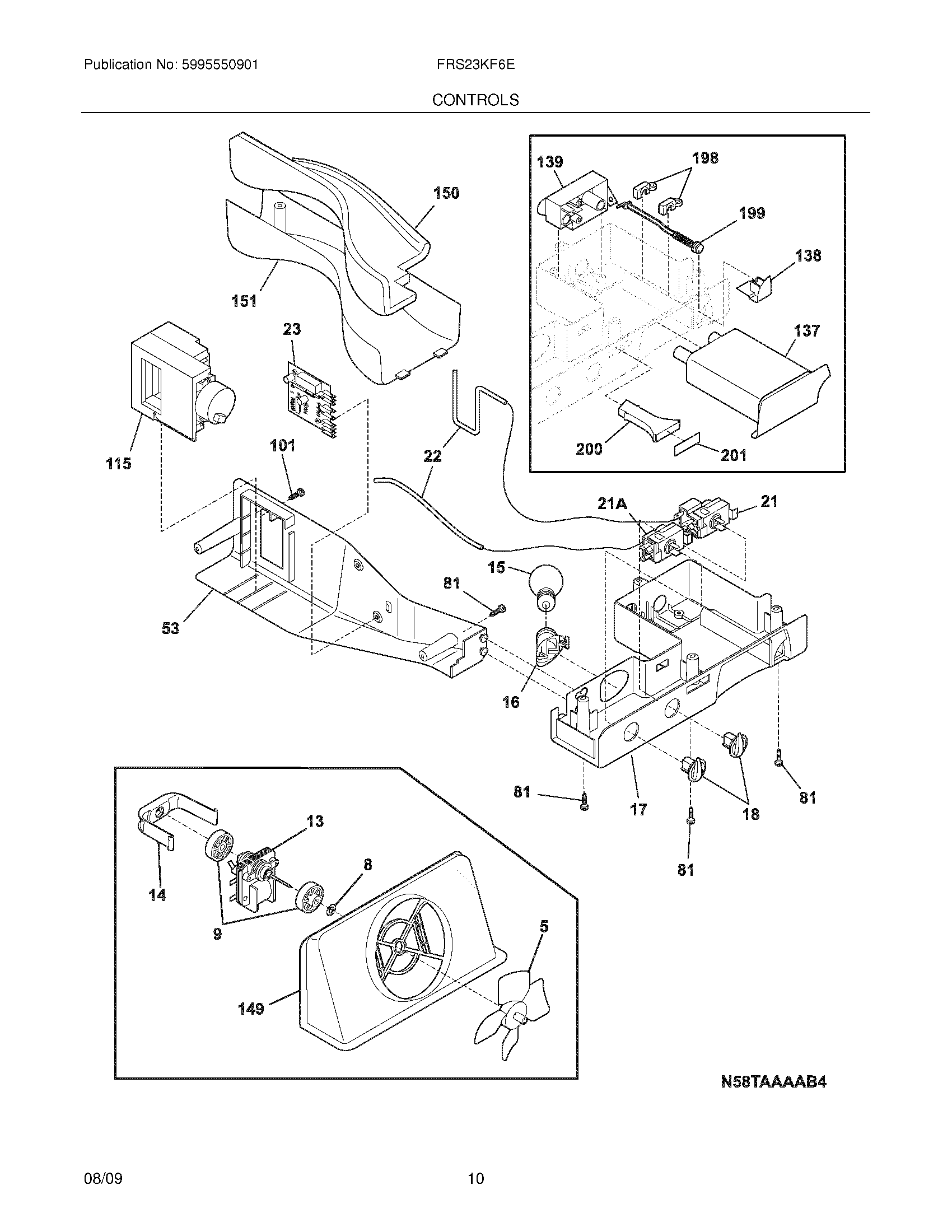

FRS23KF6EBD 11 – CONTROLS

Written by

Products

Position	Product
NI	WCI 241537804
NI	5304535377 Frigidaire Aluminum Tape
NI	5304455649 Frigidaire Refrigerator Screw
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241563601 Frigidaire Refrigerator Motor Mounting Bushing
13	808602602 Frigidaire Refrigerator Motor
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17	WCI 240374901
18	Knob-control
21A	5304496561 Frigidaire Refrigerator Cold Temperature Control Thermostat
21	241537104 Frigidaire Refrigerator Thermostat
22	218660704 Frigidaire Refrigerator Tube-Insulator
23	WCI 241508001
53	240369501 Frigidaire Refrigerator Control Box
81	5304455650 Frigidaire Refrigerator Screw
101	241637202 Frigidaire Refrigerator Screw
115	241600902 Frigidaire Refrigerator Damper Control Assembly
137	242227702 Frigidaire Refrigerator Bypass Water Filter
137	WATER FILTER PURESOURCE 2
138	WCI 240397301
139	240527001 Frigidaire Refrigerator O-Ring N
139	240396002 Frigidaire Refrigerator Primary Base Water Filter
149	242204505 Frigidaire Refrigerator Shroud
149	241528303 Frigidaire Refrigerator Seal
150	WCI 240394203
151	WCI 240373805
198	240397401 Frigidaire Refrigerator Retainer Assembly
199	WCI 240397501
199	240398401 Frigidaire Refrigerator Filter Release Spring
200	WCI 240397601
201	WCI 240398501
