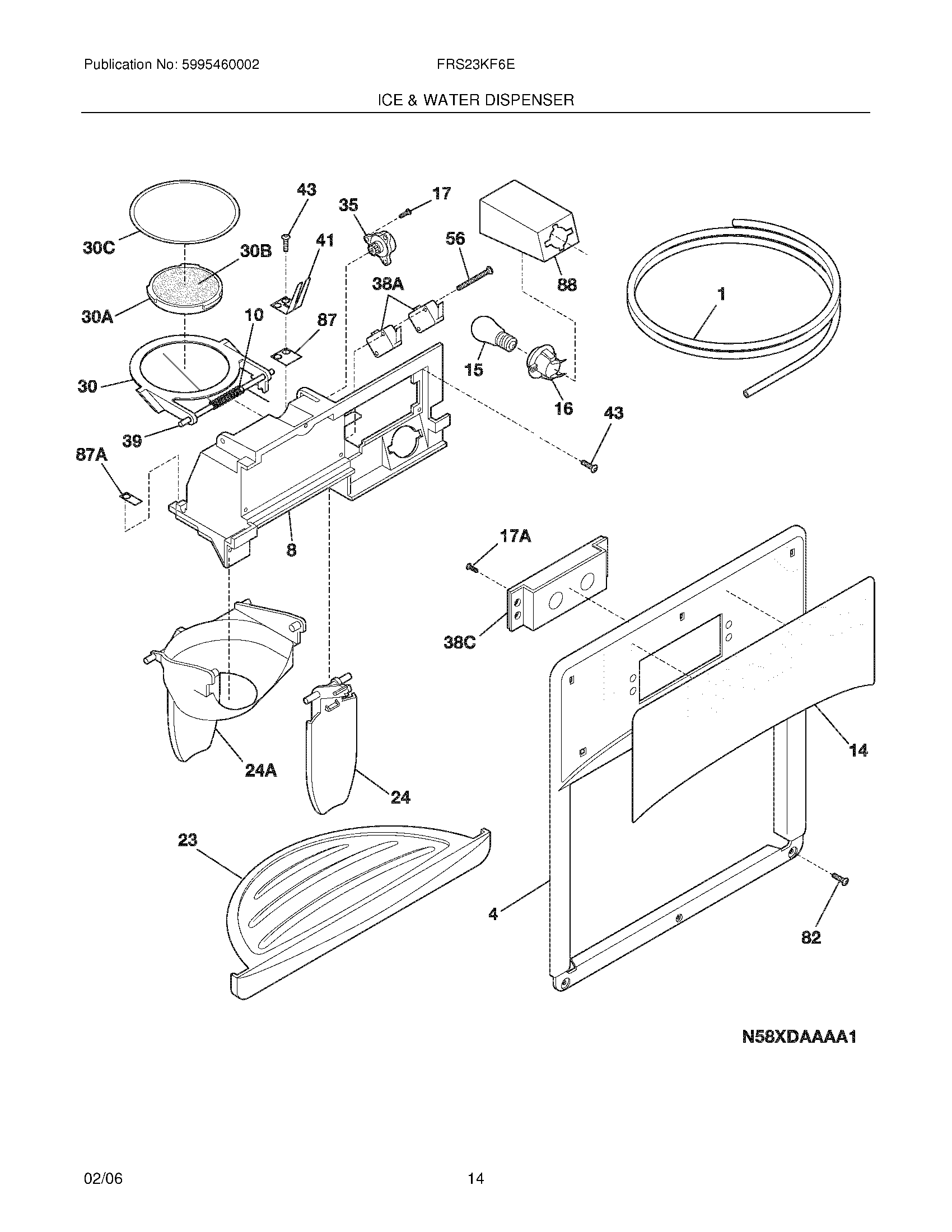

FRS23KF6EW0 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI	240561701 Frigidaire Refrigerator Seal
NI	218515401 Frigidaire Refrigerator Clip
NI	WCI 218976907
NI	218976903 Frigidaire Refrigerator Water Inlet Tube P-1
1	218976409 Frigidaire Refrigerator Water Tube
4	241679001 Frigidaire Dispenser Cover
8	WCI 5304422030
10	241688901 Frigidaire Refrigerator Torsion Spring
14	240570236 Frigidaire Refrigerator Label-Module Cover
15	Light Bulb/Lamp
16	240548901 Frigidaire Refrigerator P-1 Socket
17	241679801 Frigidaire Screw
17A	241679901 Frigidaire Refrigerator Screw
23	241649007 Frigidaire Drip Tray Assembly (Grey)
24	241682001 Frigidaire Actuator Lever
24A	241681901 Frigidaire Refrigerator Ice Actuator
30	241688401 Frigidaire Ice Door Bracket
30A	241688501 Frigidaire Refrigerator Door Center
30B	241688601 Frigidaire Refrigerator Door Insulation
30C	241688701 Frigidaire Refrigerator Door Seal
35	241689301 Frigidaire Refrigerator Rotary Damper
38A	241679201 Frigidaire Refrigerator Wiring Harness
38C	5304521693 Frigidaire Refrigerator Harness-Facade W/Li
38C	5304525097 Frigidaire Refrigerator 4 Button Switch Assembly
38A	241689106 Frigidaire Refrigerator Micro Switch
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296300
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
82	5304453707 Frigidaire Oven Screw
87	241688302 Frigidaire Refrigerator Bearing Plate
87A	241688301 Frigidaire Refrigerator Bearing Plate
88	WCI 5304421615
