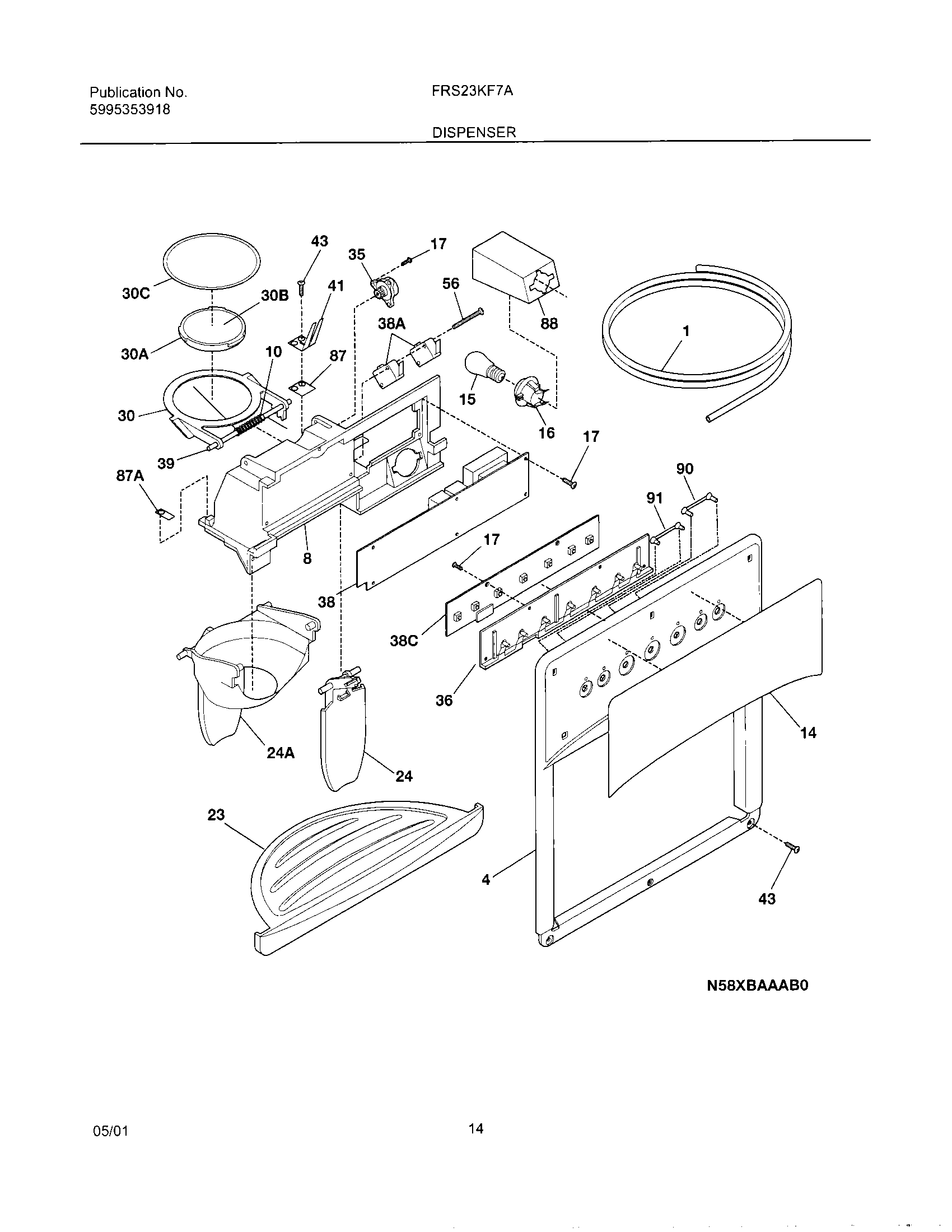

FRS23KF7AB1 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NI	WCI 218976907
1	218976901 Frigidaire Refrigerator P1-Water Inlet Tube
4	WCI 5304422012
8	WCI 5304422013
10	241688901 Frigidaire Refrigerator Torsion Spring
14	240323935 Frigidaire Refrigerator Module Cover Label
15	Light Bulb/Lamp
16	240548901 Frigidaire Refrigerator P-1 Socket
17	241679801 Frigidaire Screw
23	241649003 Frigidaire Refrigerator Drip Tray
24	241682003 Frigidaire Refrigerator Black Water Dispenser Actuator
24	241681903 Frigidaire Refrigerator Ice Dispenser Actuator
30	241688701 Frigidaire Refrigerator Door Seal
30	241688601 Frigidaire Refrigerator Door Insulation
30	241688501 Frigidaire Refrigerator Door Center
30	241688401 Frigidaire Ice Door Bracket
35	241689301 Frigidaire Refrigerator Rotary Damper
36	WCI 5304421824
38	WCI 5304421827
38	WCI 5304421640
38	241689106 Frigidaire Refrigerator Micro Switch
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296300
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
87	241688301 Frigidaire Refrigerator Bearing Plate
87	241688302 Frigidaire Refrigerator Bearing Plate
88	WCI 5304421615
90	WCI 5304421831
91	WCI 5304421850
