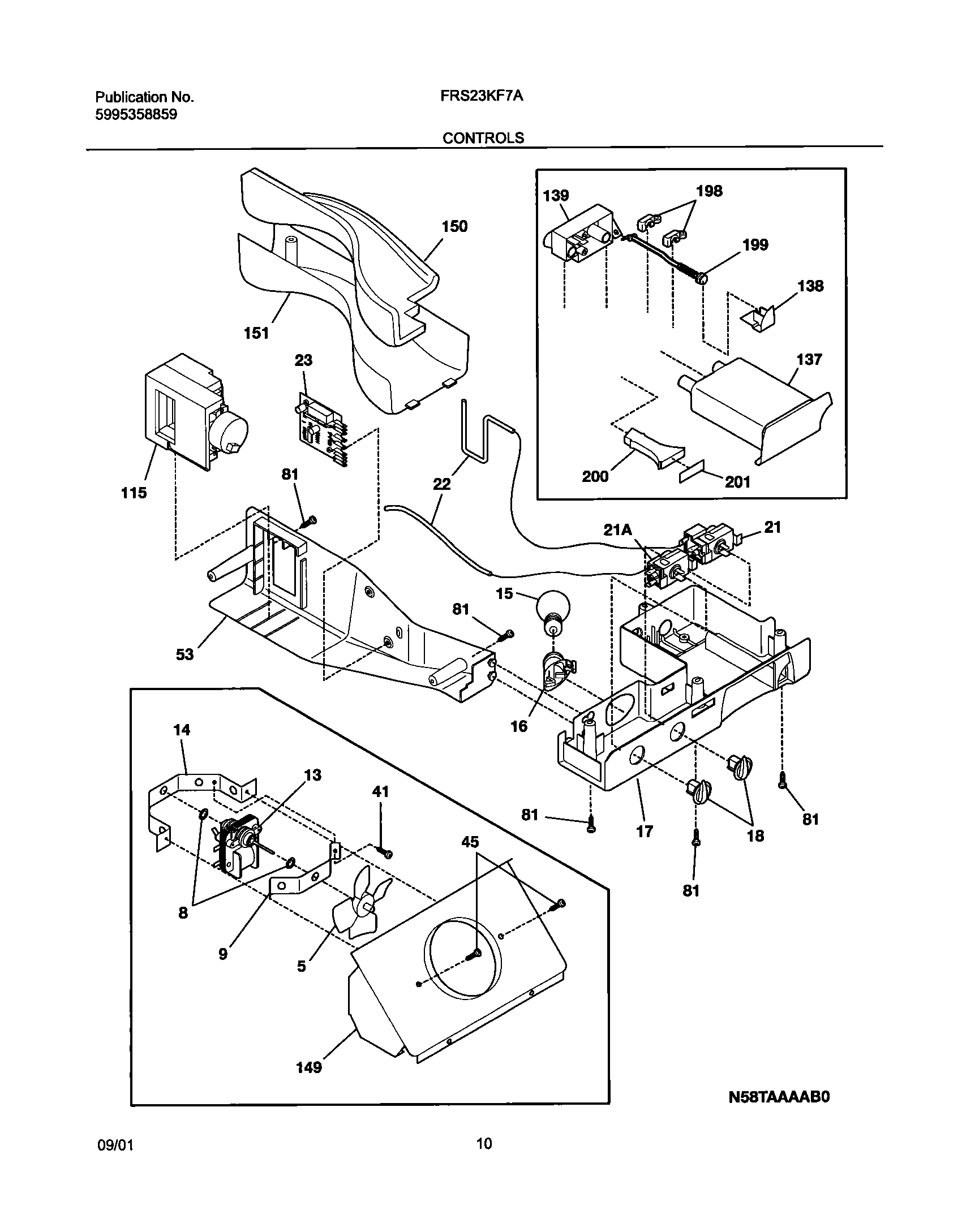

FRS23KF7AW2 11 – CONTROLS

Products

Position	Product
NI	5304455649 Frigidaire Refrigerator Screw
NI	215474201 Frigidaire Refrigerator Washer
NI	WCI 240439901
NI	3205266 Frigidaire Refrigerator Edge Protector
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17	WCI 240374901
18	Knob-control
21	WCI 240375903
21A	5304496561 Frigidaire Refrigerator Cold Temperature Control Thermostat
22	218660704 Frigidaire Refrigerator Tube-Insulator
23	WCI 240375803
41	5308000039 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
53	240369501 Frigidaire Refrigerator Control Box
81	5304455650 Frigidaire Refrigerator Screw
115	WCI 5304421593
115	WCI 240440701
137	WATER FILTER PURESOURCE 2
137	242227702 Frigidaire Refrigerator Bypass Water Filter
138	WCI 240397301
139	240396002 Frigidaire Refrigerator Primary Base Water Filter
149	WCI 240331601
150	WCI 240394203
151	WCI 240373805
198	240397401 Frigidaire Refrigerator Retainer Assembly
199	240398401 Frigidaire Refrigerator Filter Release Spring
199	WCI 240397501
200	WCI 240397601
201	WCI 240398502
