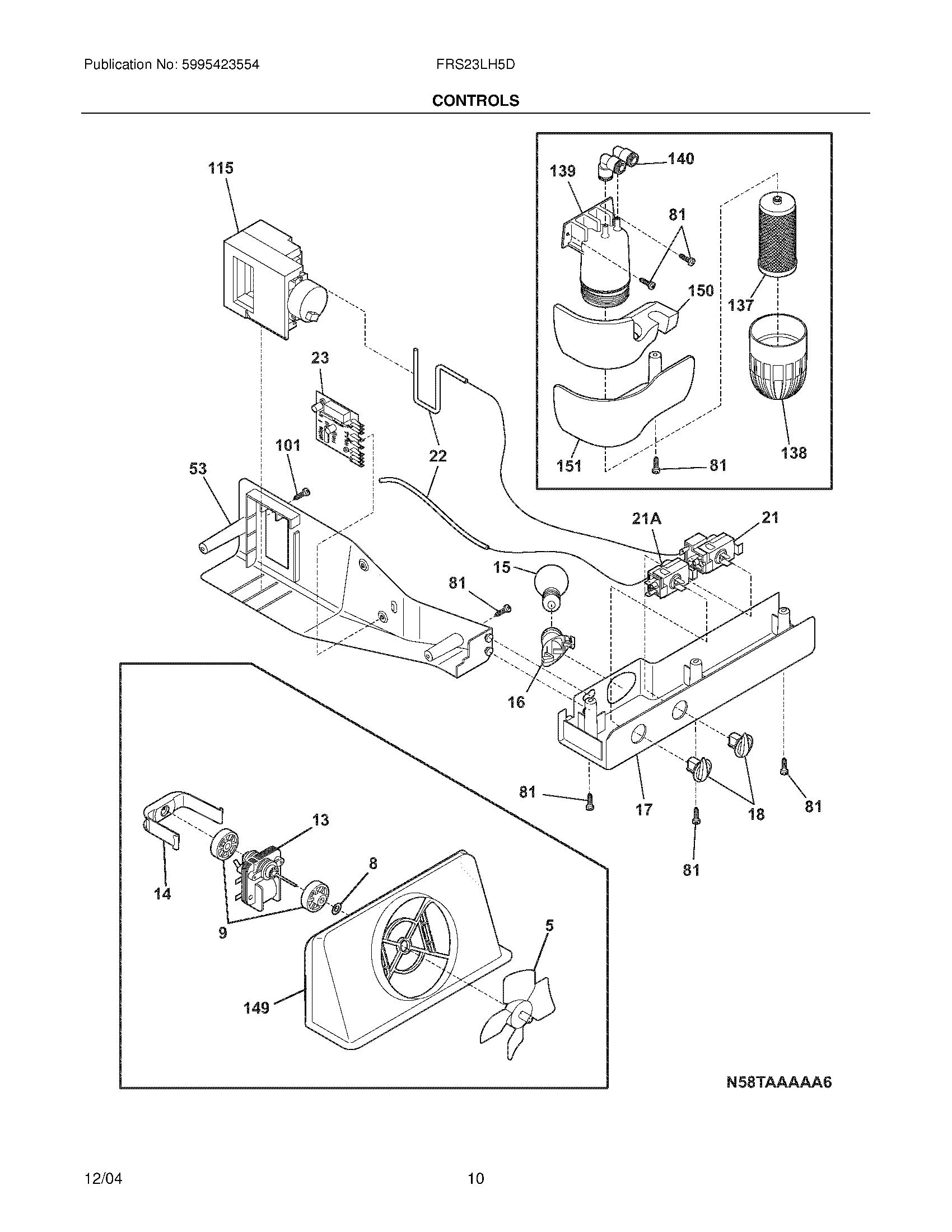

FRS23LH5DB6 11 – CONTROLS

FRS23LH5DB6 11 – CONTROLS

Written by

in

FRS23LH5DB6 11 – CONTROLS

Products

PositionProduct
NI5304455649 Frigidaire Refrigerator Screw
NIWCI 241537802
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8215474201 Frigidaire Refrigerator Washer
9241563601 Frigidaire Refrigerator Motor Mounting Bushing
13EVAP MOTOR KIT
14242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 240374006
18Knob-control
21241537104 Frigidaire Refrigerator Thermostat
21A5304496561 Frigidaire Refrigerator Cold Temperature Control Thermostat
22218660704 Frigidaire Refrigerator Tube-Insulator
23WCI 241508001
53240369501 Frigidaire Refrigerator Control Box
815304455650 Frigidaire Refrigerator Screw
101218493101 Frigidaire Refrigerator Screw
115241600902 Frigidaire Refrigerator Damper Control Assembly
137WFCB WATER FILTER PURESOURCE 4"
137218710300 Frigidaire Refrigerator Water Filter Wrench
138240434401 Frigidaire Refrigerator Water Filter Cup Primary
138218904301 Frigidaire Refrigerator O-Ring Cup P1
139240434301 Frigidaire Water Filter Housing
140240545201 Frigidaire Refrigerator Elbow P-1
149242204505 Frigidaire Refrigerator Shroud
149241528303 Frigidaire Refrigerator Seal
150WCI 240394102
151WCI 240376002
