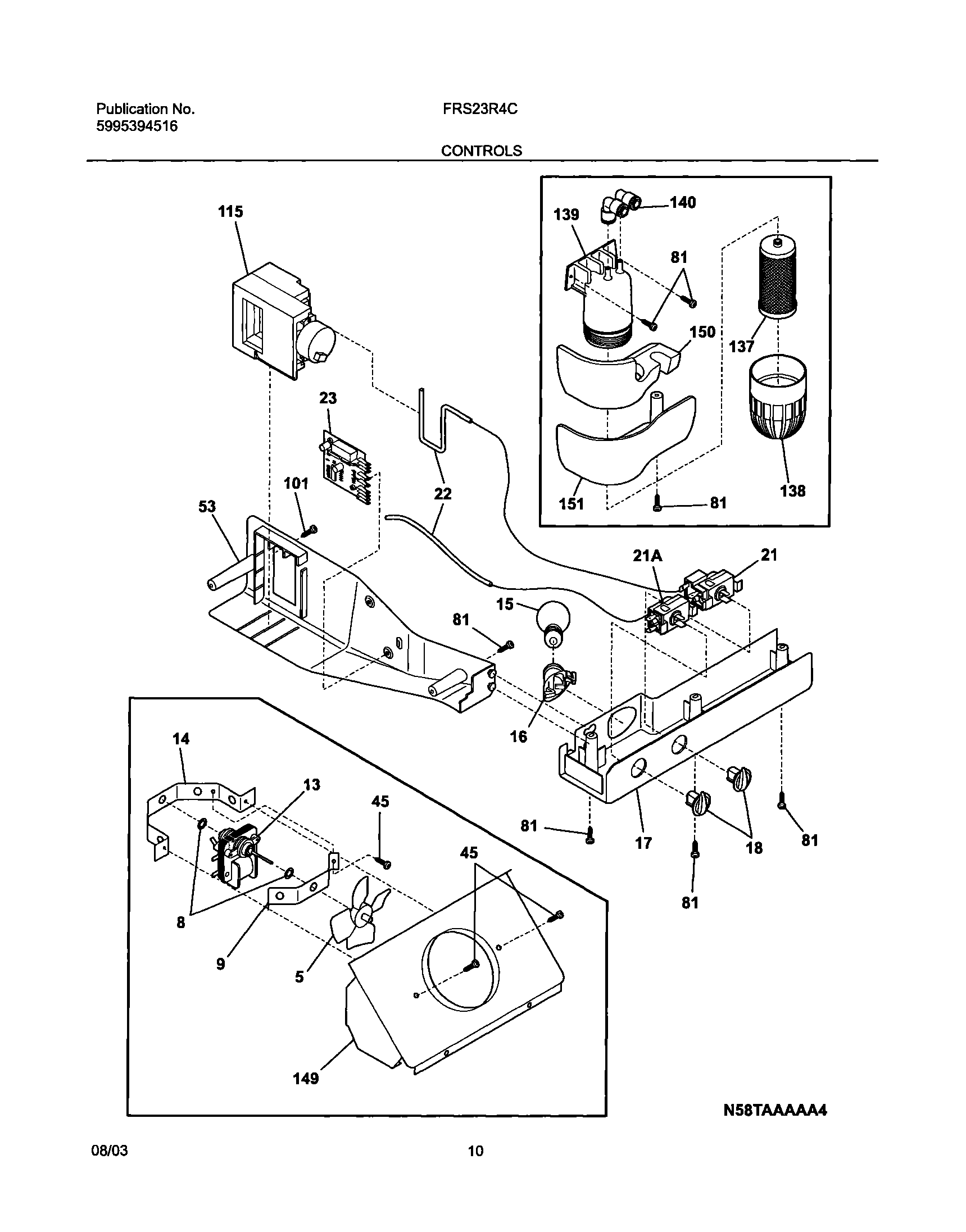

FRS23R4CQ2 11 – CONTROLS

FRS23R4CQ2 11 – CONTROLS

Written by

in

FRS23R4CQ2 11 – CONTROLS

Products

PositionProduct
NI5304455649 Frigidaire Refrigerator Screw
NI215474201 Frigidaire Refrigerator Washer
NIWCI 241508102
NI3205266 Frigidaire Refrigerator Edge Protector
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
13EVAP MOTOR KIT
14240438003 Frigidaire Refrigerator Bracket & Bushing
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 240374006
18Knob-control
21241537104 Frigidaire Refrigerator Thermostat
21A5304496561 Frigidaire Refrigerator Cold Temperature Control Thermostat
22218660704 Frigidaire Refrigerator Tube-Insulator
23WCI 241508001
455304455651 Frigidaire Refrigerator Screw
53240369501 Frigidaire Refrigerator Control Box
815304455650 Frigidaire Refrigerator Screw
101218493101 Frigidaire Refrigerator Screw
115241600902 Frigidaire Refrigerator Damper Control Assembly
137218710300 Frigidaire Refrigerator Water Filter Wrench
137WFCB WATER FILTER PURESOURCE 4"
138218904301 Frigidaire Refrigerator O-Ring Cup P1
138240434401 Frigidaire Refrigerator Water Filter Cup Primary
139240434301 Frigidaire Water Filter Housing
140240545201 Frigidaire Refrigerator Elbow P-1
149WCI 240331607
150WCI 240394102
151WCI 240376002
