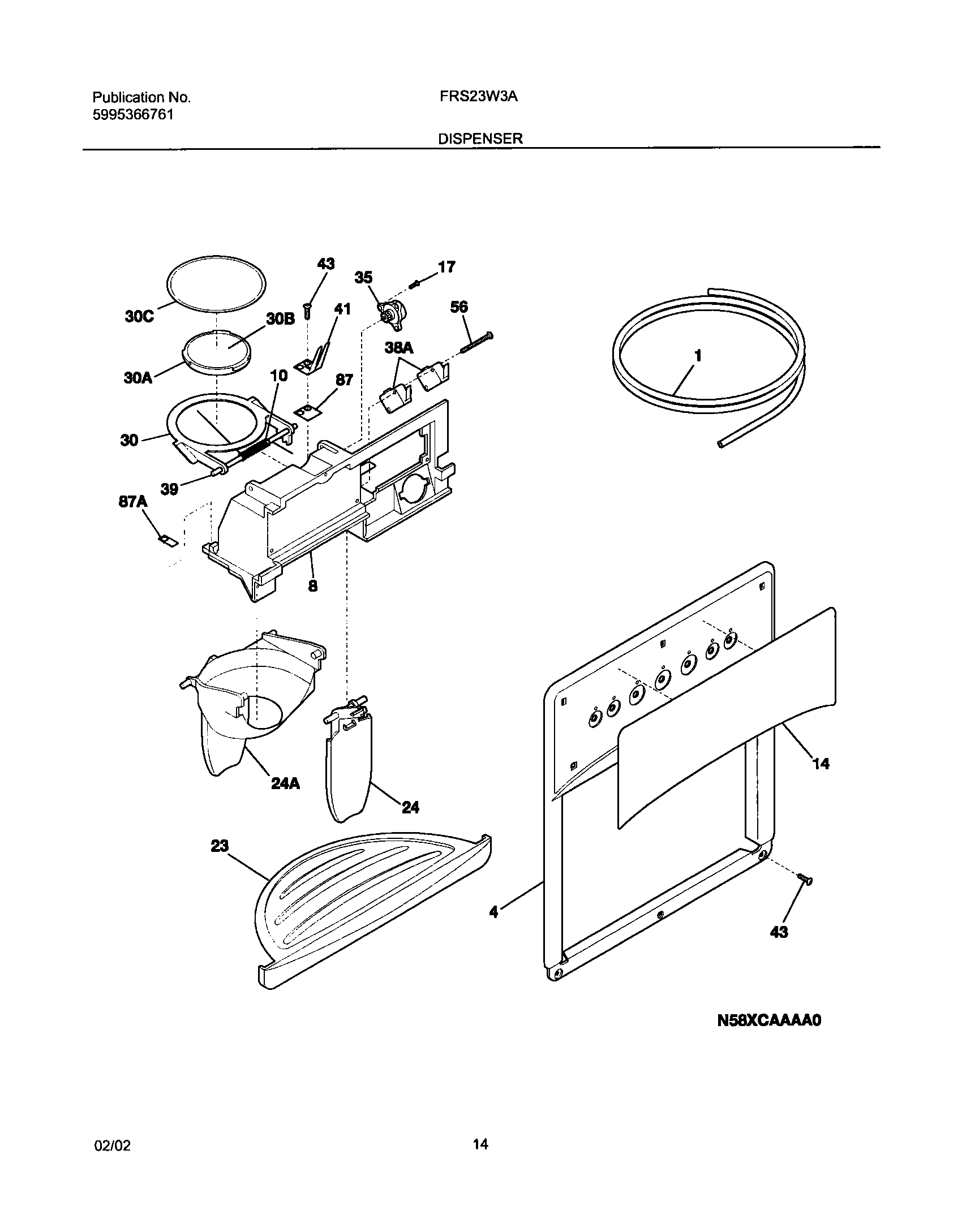

FRS23W3AQ3 15 – DISPENSER

FRS23W3AQ3 15 – DISPENSER

Written by

in

FRS23W3AQ3 15 – DISPENSER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NIWCI 215781700
NI5303918256 Frigidaire Refrigerator Heater Kit Dispenser
1218976409 Frigidaire Refrigerator Water Tube
4WCI 240351802
8WCI 5304422144
10241688901 Frigidaire Refrigerator Torsion Spring
14WCI 240323909
17241679801 Frigidaire Screw
23241649003 Frigidaire Refrigerator Drip Tray
245304493021 Frigidaire Refrigerator Actuator Kit
30C241688701 Frigidaire Refrigerator Door Seal
30B241688601 Frigidaire Refrigerator Door Insulation
30241688401 Frigidaire Ice Door Bracket
30A241688501 Frigidaire Refrigerator Door Center
35241689301 Frigidaire Refrigerator Rotary Damper
38A241689106 Frigidaire Refrigerator Micro Switch
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296300
56241689201 Frigidaire Refrigerator Screw-Micro Switch
87241688302 Frigidaire Refrigerator Bearing Plate
87A241688301 Frigidaire Refrigerator Bearing Plate
