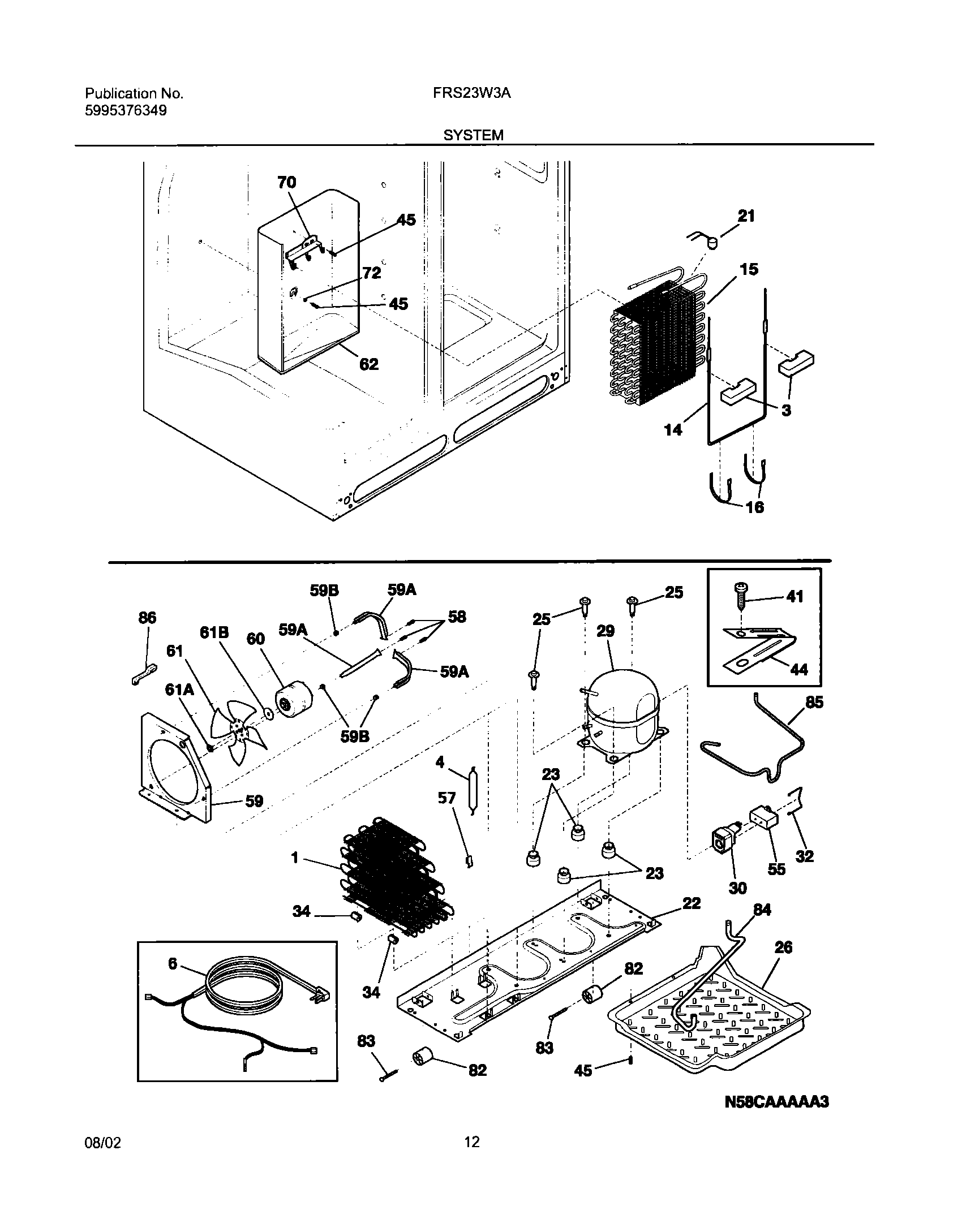

FRS23W3AQ6 13 – SYSTEM

FRS23W3AQ6 13 – SYSTEM

Written by

in

FRS23W3AQ6 13 – SYSTEM

Products

PositionProduct
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NIWCI 240449602
NIWCI 5303918222
NI5303918328 Frigidaire Refrigerator OS1 Heat Exchanger Kit
NIWCI 240556902
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NIWCI 240397201
1WCI 240333602
3218679613 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 240346402
145303918255 Frigidaire Refrigerator Defrost Heater Kit
155303918286 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22WCI 240330002
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25Screw-compressor mtg,hex washer head ,
26241697603 Frigidaire Defrost Pan
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
305304491941 Frigidaire Refrigerator Starter Relay and Plug Kit
32218973501 Frigidaire Refrigerator Clamp
34240405201 Frigidaire Refrigerator Grommet
41WCI 218897001
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
55218909912 Frigidaire Capacitor Run
57240542601 Frigidaire Clip-WIRING Harness
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59BWCI 240346601
59A240346501 Frigidaire Refrigerator Support Bracket
59WCI 240315501
60CONDENSER FAN MOTOR KIT
61AWCI 218956701
61WCI 240315401
61BWCI 218956801
62WCI 240429401
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
72WCI 218397000
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84241957901 Frigidaire Refrigerator Tube-Drain
85WCI 240346201
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
