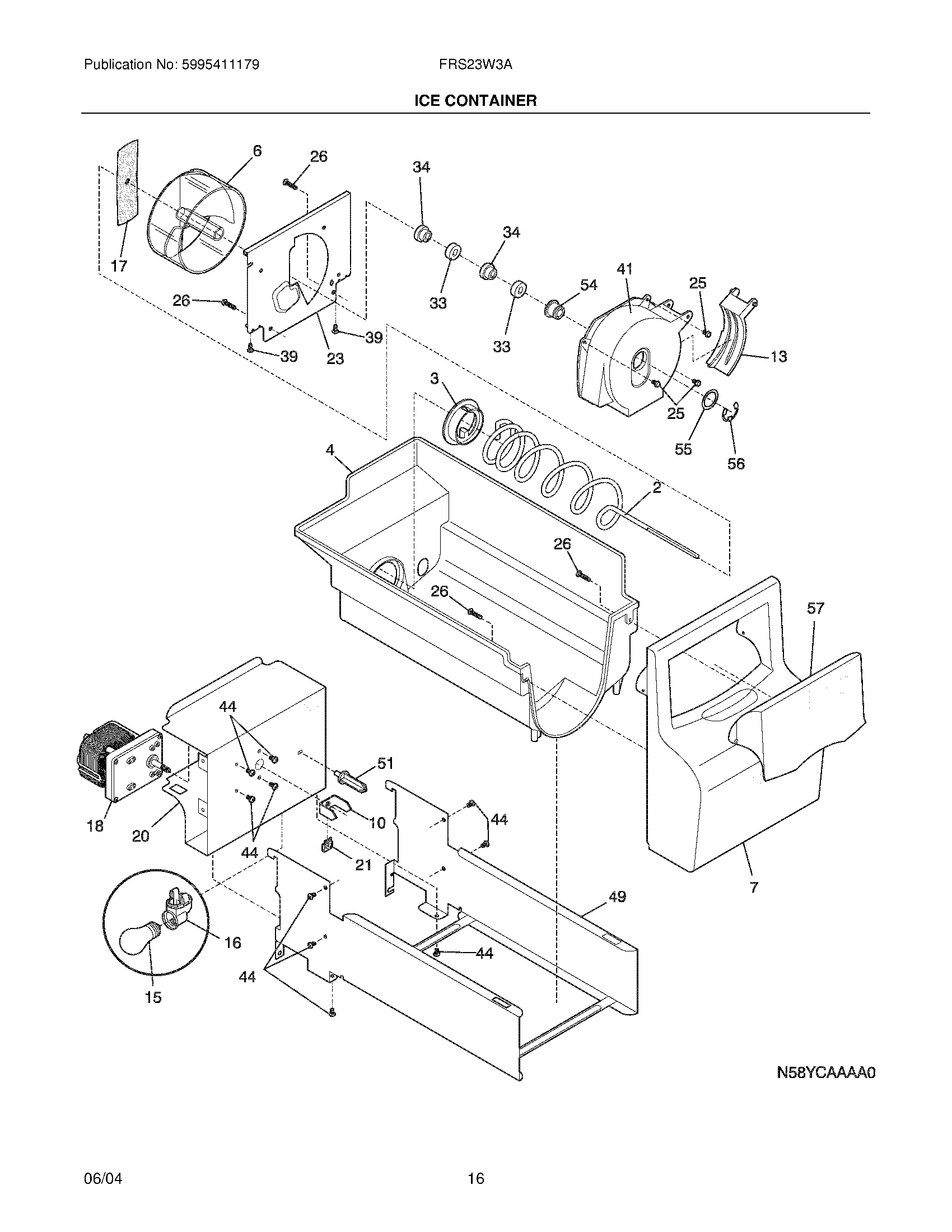

FRS23W3AQB 17 – ICE CONTAINER

Products

Position	Product
NI	WCI 240323807
NI	Wiring Harness,ice maker ,internal ,
NI	WCI 215781700
2	241716101 Frigidaire Refrigerator Ice Auger
3	241685201 Frigidaire Refrigerator Drive Cam
4	241734001 Frigidaire Refrigerator Ice Bucket
6	241685101 Frigidaire Refrigerator Ice Dispenser Drum
7	241734201 Frigidaire Refrigerator Front Ice Container
15	316538904 Frigidaire Oven Lamp Light
16	Receptacle,E27A lampholder ,250 V
17	241684503 Frigidaire Ice Crusher Blade
18	5304462594 Frigidaire Refrigerator Motor-Auger
20	WCI 5304407106
21	241726501 Frigidaire Refrigerator Drive Bar
23	241684001 Frigidaire Refrigerator Plate-Front
25	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
26	215503203 Frigidaire Refrigerator Door Handle Screw
33	241684802 Frigidaire Refrigerator Spacer
34	241689802 Frigidaire Refrigerator Spacer
39	241690501 Frigidaire Refrigerator Screw
41	241885001 Frigidaire Refrigerator Ice Crusher Housing
44	WCI 218359200
49	WCI 5304404880
51	WCI 5304404336
54	241685001 Frigidaire Auger Nut
55	241690306 Frigidaire Refrigerator Washer
56	241690201 Frigidaire Refrigerator E-Ring
57	241734101 Frigidaire Refrigerator Front Access Door Ice Bin
