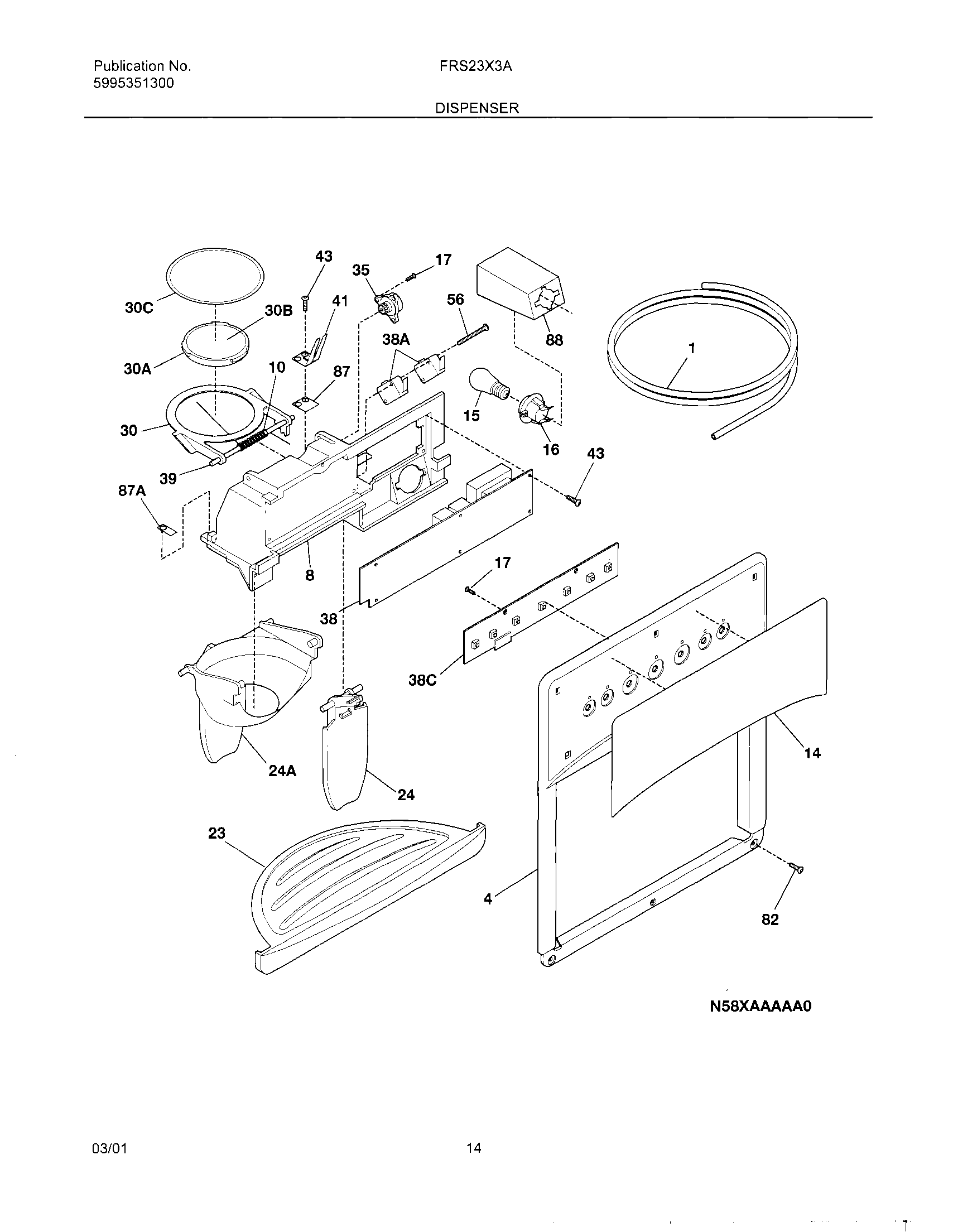

FRS23X3AW0 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	WCI 218976907
NI	218976904 Frigidaire Refrigerator Water Inlet Tube
1	218976409 Frigidaire Refrigerator Water Tube
1	WCI 218976906
4	WCI 5304421822
8	WCI 5304421849
8	WCI 5304421823
10	241688901 Frigidaire Refrigerator Torsion Spring
14	WCI 240323902
15	Light Bulb/Lamp
16	240548901 Frigidaire Refrigerator P-1 Socket
17	241679801 Frigidaire Screw
23	241649007 Frigidaire Drip Tray Assembly (Grey)
24	241682001 Frigidaire Actuator Lever
24	241681901 Frigidaire Refrigerator Ice Actuator
30	241688401 Frigidaire Ice Door Bracket
30	241688701 Frigidaire Refrigerator Door Seal
30	241688601 Frigidaire Refrigerator Door Insulation
30	241688501 Frigidaire Refrigerator Door Center
35	241689301 Frigidaire Refrigerator Rotary Damper
36	WCI 5304421824
38	241689106 Frigidaire Refrigerator Micro Switch
38	WCI 5304421828
38	WCI 5304421827
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296300
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
87	241688301 Frigidaire Refrigerator Bearing Plate
87	241688302 Frigidaire Refrigerator Bearing Plate
88	WCI 5304421615
90	WCI 5304421831
