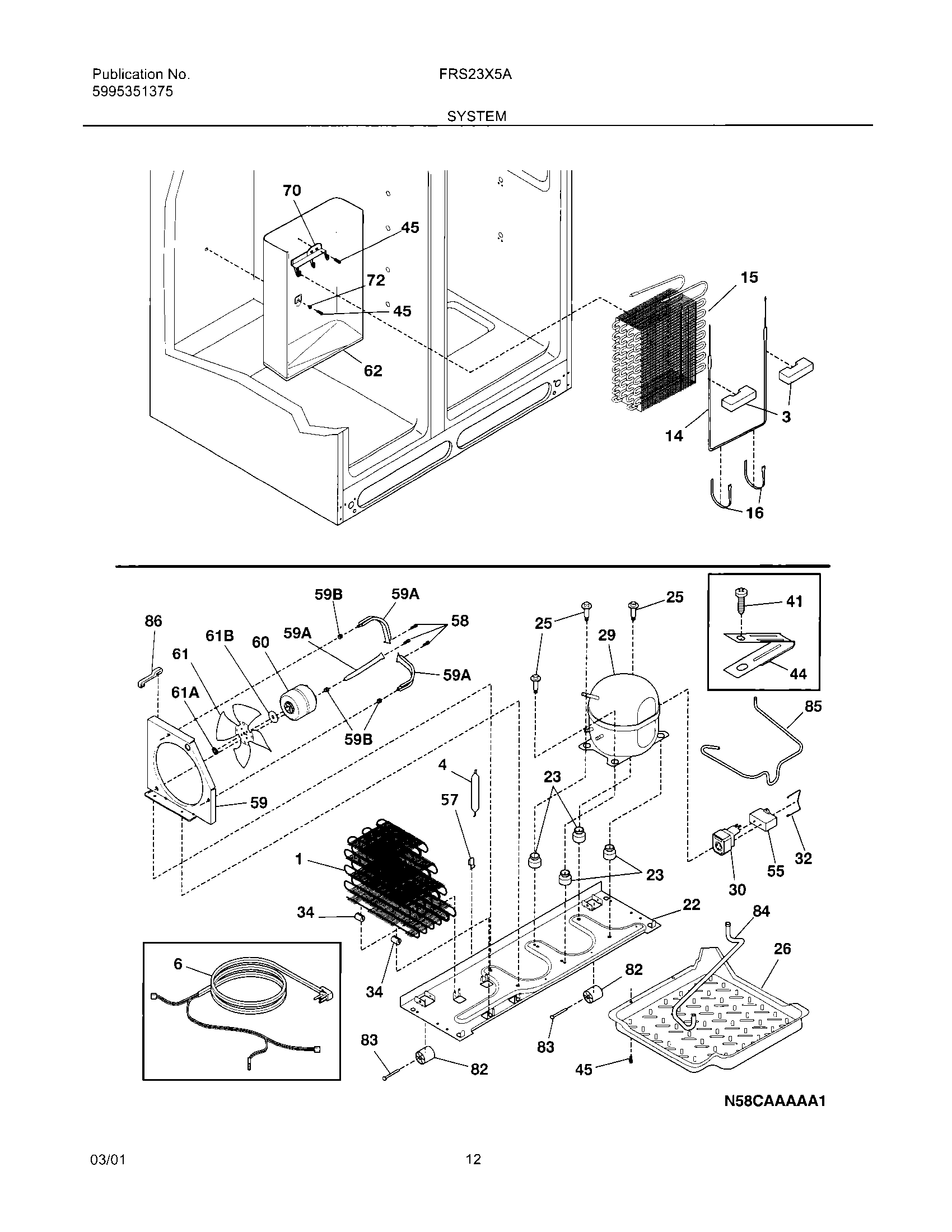

FRS23X5AW1 13 – SYSTEM

Products

Position	Product
NI	5303918328 Frigidaire Refrigerator OS1 Heat Exchanger Kit
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	WCI 240425701
NI	WCI 240315901
NI	WCI 5303918222
NI	240409302 Frigidaire Refrigerator Condenser Tube Spacer
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
1	WCI 240333602
3	218679613 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
14	5303918255 Frigidaire Refrigerator Defrost Heater Kit
15	5303918286 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
22	WCI 240330002
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	Screw-shoulder,hex hd ,1/4-28 shoulder ,(3)
26	241697603 Frigidaire Defrost Pan
29	5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30	WCI 218721113
32	218740800 Frigidaire Refrigerator Clamp
34	240405201 Frigidaire Refrigerator Grommet
41	WCI 218897001
45	5304455650 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	Screw,No.10 pan hd ,8-18 x .5
59	240346501 Frigidaire Refrigerator Support Bracket
59	WCI 240315501
59	WCI 240346601
60	CONDENSER FAN MOTOR KIT
61	WCI 215004800
61	WCI 215004700
61	WCI 240315401
62	WCI 240429401
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241957901 Frigidaire Refrigerator Tube-Drain
85	WCI 240346201
86	WCI 240415801
