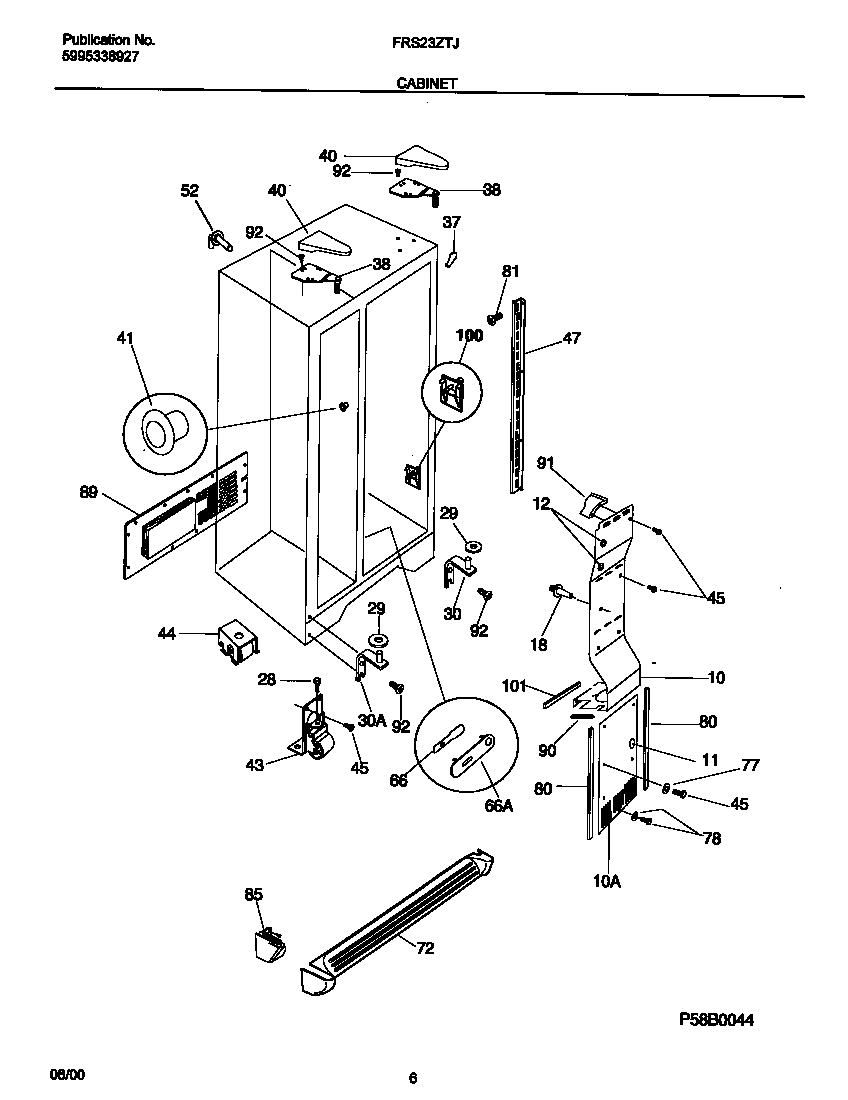

FRS23ZTJB0 04 – CABINET

FRS23ZTJB0 04 – CABINET

Written by

in

FRS23ZTJB0 04 – CABINET

Products

PositionProduct
*832575303321321 Frigidaire Refrigerator Black Touch-Up Paint
*83249WCI 215598900
*83250WCI 218871201
*83256WCI 218902101
*83253SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*83251WCI 218979701
*83248SUPPORT-AIR DUCT CVR,1.83“ LONG
*83247NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*83255WCI 5303322647
*83254WCI 5303289036
*832525304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30AWCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30BWCI 218979601
37WCI 5303321083
38WCI 218215242
38WCI 218215244
40WCI 5303323268
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922705
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101BWCI 218663103
101AWCI 215305702
