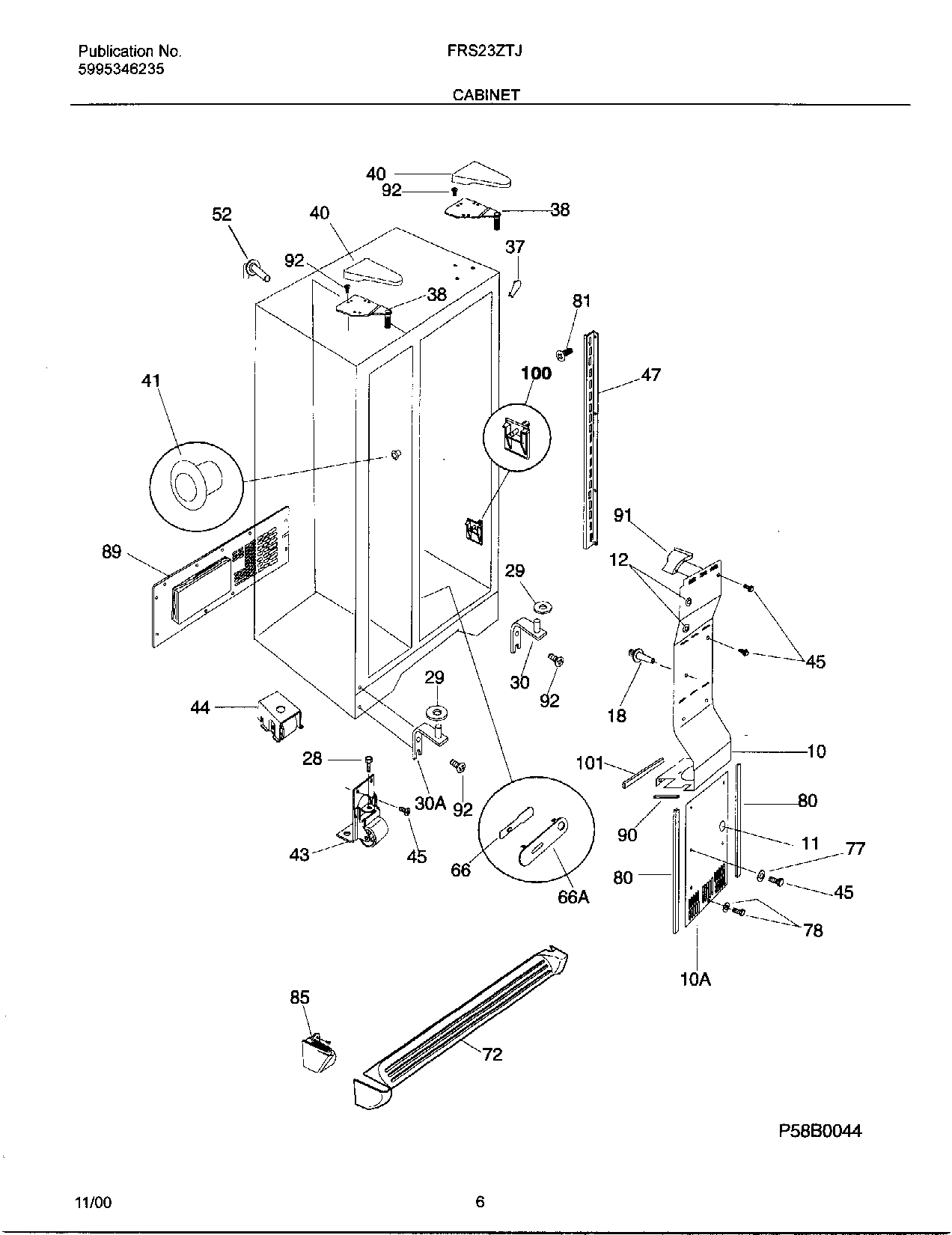

FRS23ZTJW1 06 – CABINET

FRS23ZTJW1 06 – CABINET

Written by

in

FRS23ZTJW1 06 – CABINET

Products

PositionProduct
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NISCREW,HEX HD SER WSHR ,8-18 X 0.375
NIWCI 5303289036
NIWCI 5303322647
NISUPPORT-AIR DUCT CVR,1.83“ LONG
NINUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
NIWCI 218979701
NIWCI 215598900
NISCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
NI241500303 Frigidaire Refrigerator Screw
NI5304414035 Frigidaire Refrigerator Touch Up Paint Bisque
NIWCI 218902101
NI5303321319 Frigidaire Refrigerator White Touch Up Paint
NIWCI 218871201
NI5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 215637402
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30AWCI 218993901
30AWCI 218979601
30WCI 218993701
37WCI 5303321081
37WCI 5303321083
37WCI 5304413167
38WCI 218215242
38WCI 218215243
38WCI 218215241
38WCI 218215244
40WCI 5304414819
40WCI 5303318773
40WCI 5303323268
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66AWCI 218171301
72WCI 218359616
72WCI 218359609
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922707
85WCI 218922705
85WCI 218922701
89WCI 218871501
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
101WCI 218663103
