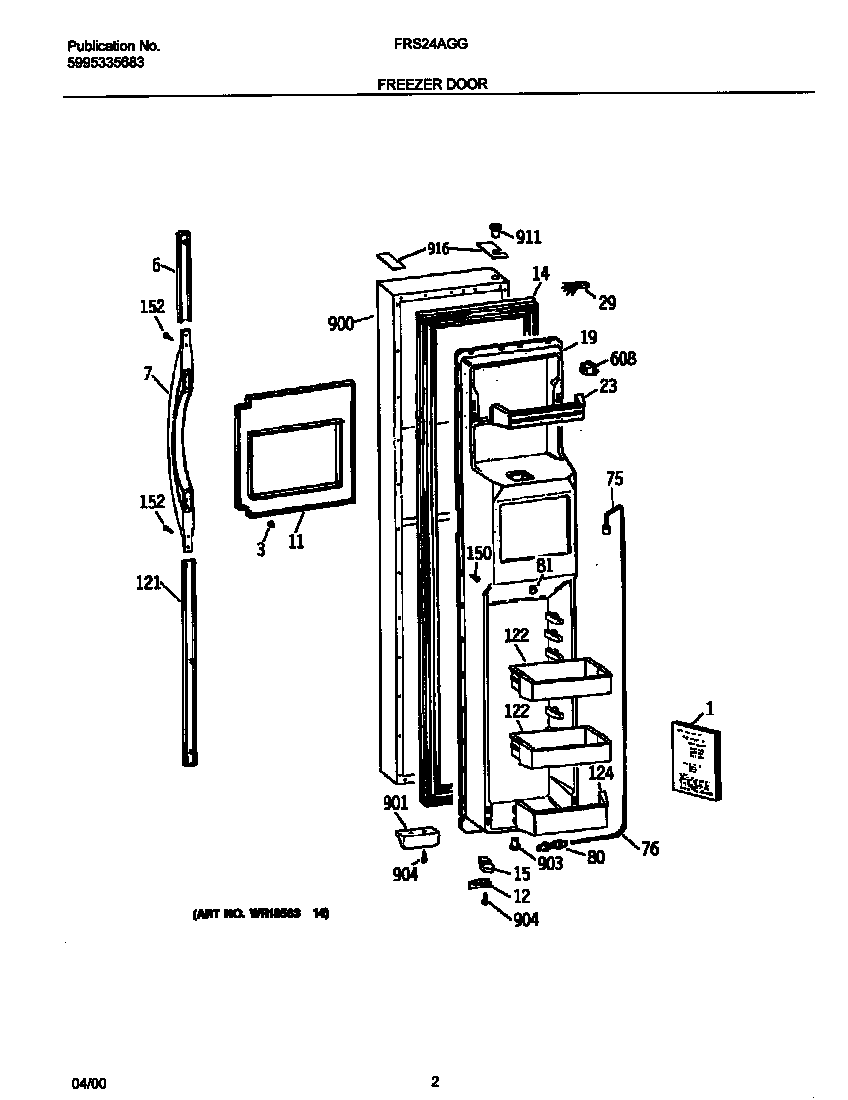

FRS24AGGB7 02 – FREEZER DOOR

FRS24AGGB7 02 – FREEZER DOOR

Written by

in

FRS24AGGB7 02 – FREEZER DOOR

Products

PositionProduct
1AScrew-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
1BTECHNICAL GUIDE,MINI MANUAL ,
3WCI 5304406358
6WCI 5304406663
7WCI 5304416629
11WCI 5304406668
12WCI 5304406361
14WCI 5304406363
15WCI 5304406365
19WCI 5304413798
23WCI 5304406367
29WCI 5304415910
75WCI 5304413799
76WCI 5304406370
80NUT-SLEEVE,5/16 ,(3)
81WCI 5304413800
121WCI 5304406669
122WCI 5304406372
124WCI 5304406373
150WCI 5304406374
152WCI 5304406671
608WCI 5304406376
900WCI 5304406632
901WCI 5304406379
903WCI 5304406382
904SCREW-DOOR STRIKE,(8)
911WCI 5304406385
916WCI 5304406674
