FRS24BGGW8 02 – FREEZER DOOR

FRS24BGGW8 02 – FREEZER DOOR

Written by

in

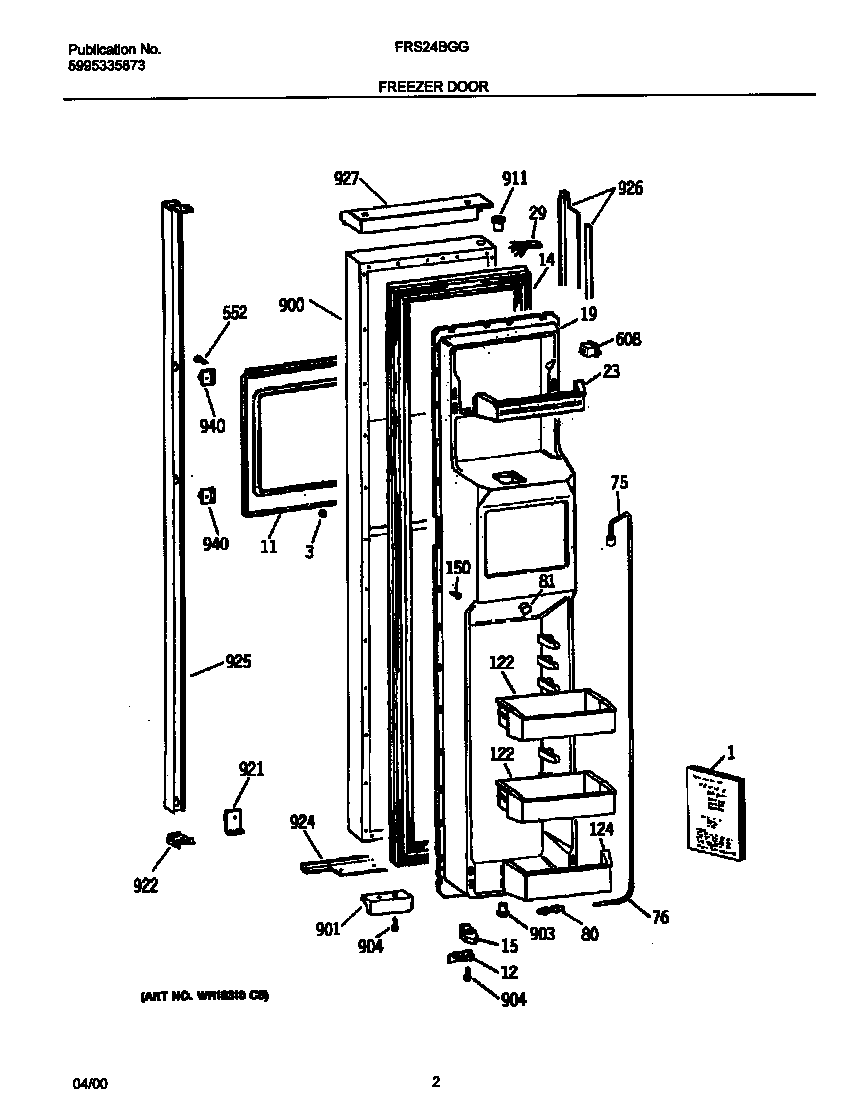

FRS24BGGW8 02 – FREEZER DOOR

Products

PositionProduct
1WCI 5304413776
1TECHNICAL GUIDE,MINI MANUAL ,
3WCI 5304406358
11WCI 5304406360
12WCI 5304406361
14WCI 5304406362
15WCI 5304406364
19WCI 5304413798
23WCI 5304406367
29WCI 5304415910
75WCI 5304413799
76WCI 5304406370
80NUT-SLEEVE,5/16 ,(3)
81WCI 5304413800
122WCI 5304406372
124WCI 5304406373
150WCI 5304406374
552SCREW-HINGE MTG,(12)
608WCI 5304406376
900WCI 5304413823
901WCI 5304406380
903WCI 5304406381
904SCREW-DOOR STRIKE,(8)
911WCI 5304406384
921WCI 5304406387
922WCI 5304406389
924WCI 5304406391
925WCI 5304406634
926WCI 5304406395
927WCI 5304406397
940WCI 5304406635
