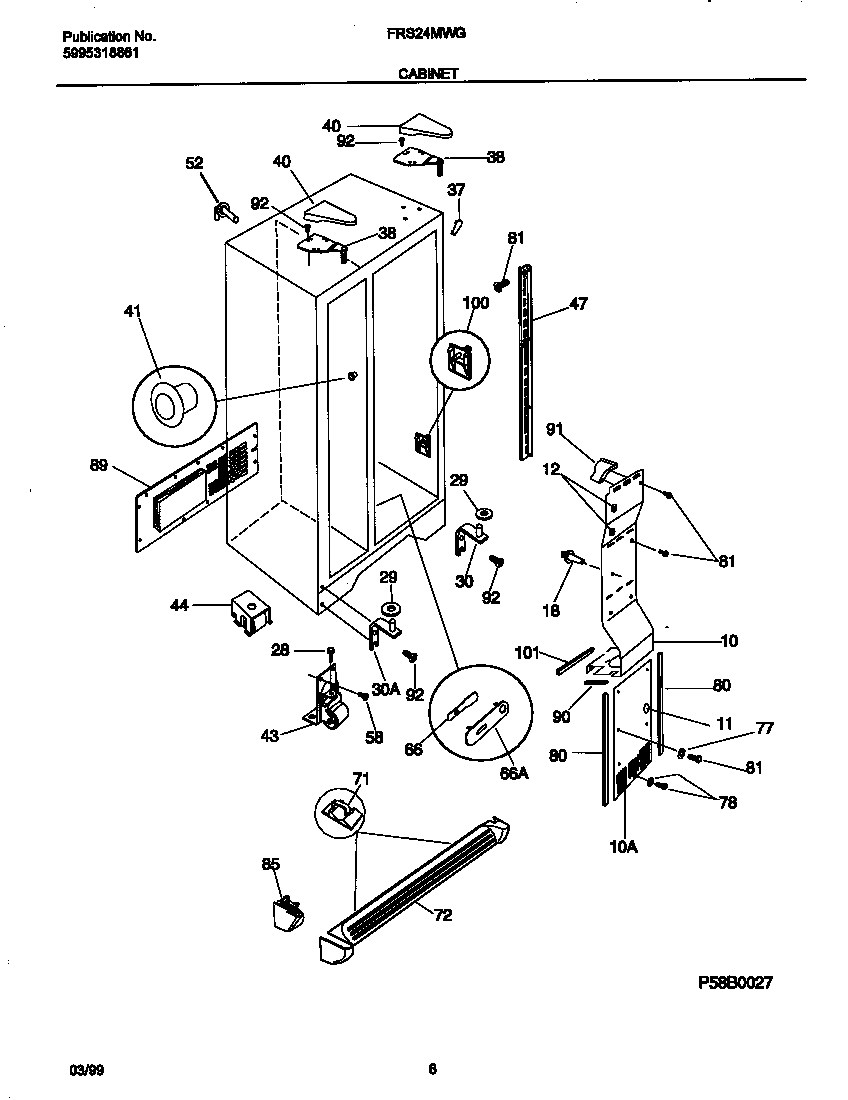

FRS24MWGD2 04 – CABINET

FRS24MWGD2 04 – CABINET

Written by

in

FRS24MWGD2 04 – CABINET

Products

PositionProduct
*46448SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*46452WCI 218902101
*46451WCI 5303322647
*46444SUPPORT-AIR DUCT CVR,1.83“ LONG
*46455PLUG, BUTTON, CABINET LINER (NI)
*46453TOUCH, UP PAINT, ALMOND (NI)
*46443WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*46446WCI 218730800
*46449WCI 5303289036
*464475304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*46450WCI 5303289037
*46445WCI 218871201
10WCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29AWCI 215314301
29BWCI 215598900
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
30BWCI 218730700
37WCI 5303321082
38AWCI 218215221
38BWCI 218215223
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101BWCI 218663103
101AWCI 215305702
