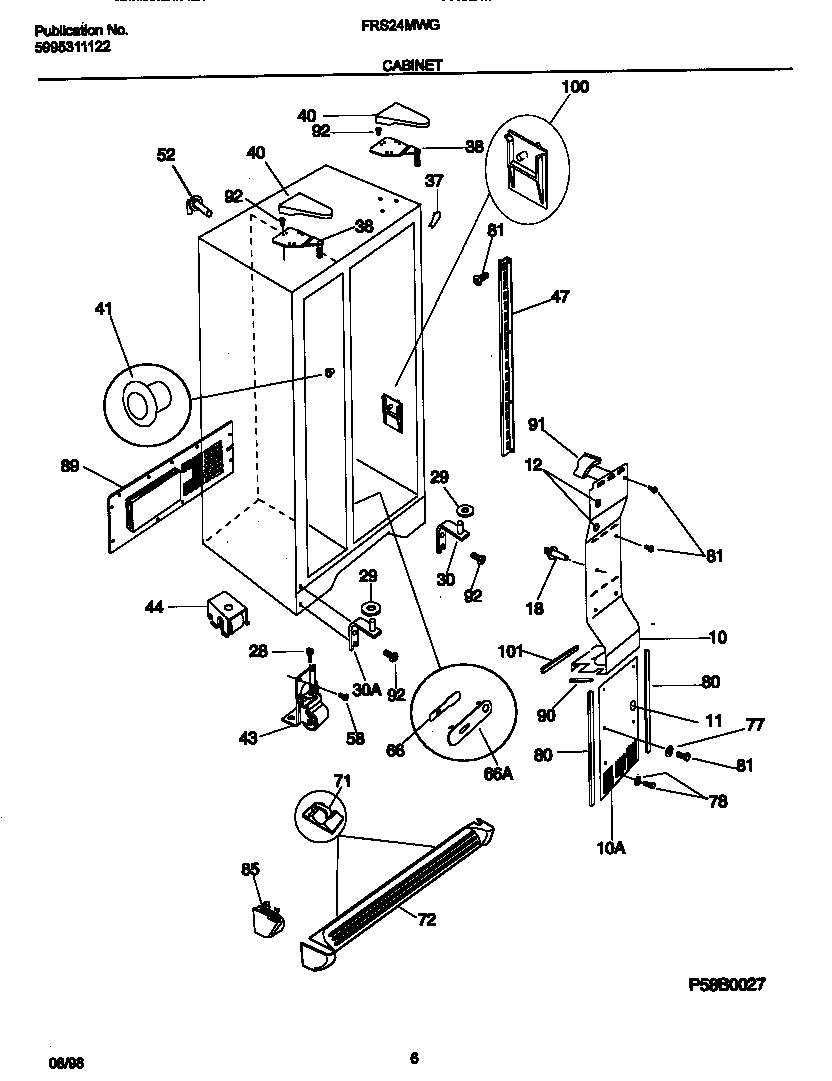

FRS24MWGW1 04 – CABINET

FRS24MWGW1 04 – CABINET

Written by

in

FRS24MWGW1 04 – CABINET

Products

PositionProduct
*42808NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*42806WCI 218730800
*42805WCI 218871201
*42810SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*42811WCI 5303322647
*42804SUPPORT-AIR DUCT CVR,1.83“ LONG
*42807WCI 218730900
*42815PLUG, BUTTON, CABINET LINER (NI)
*42814WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*428125303321319 Frigidaire Refrigerator White Touch Up Paint
*428095304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BWCI 218730700
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
37WCI 5303321081
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
38AWCI 218215213
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
