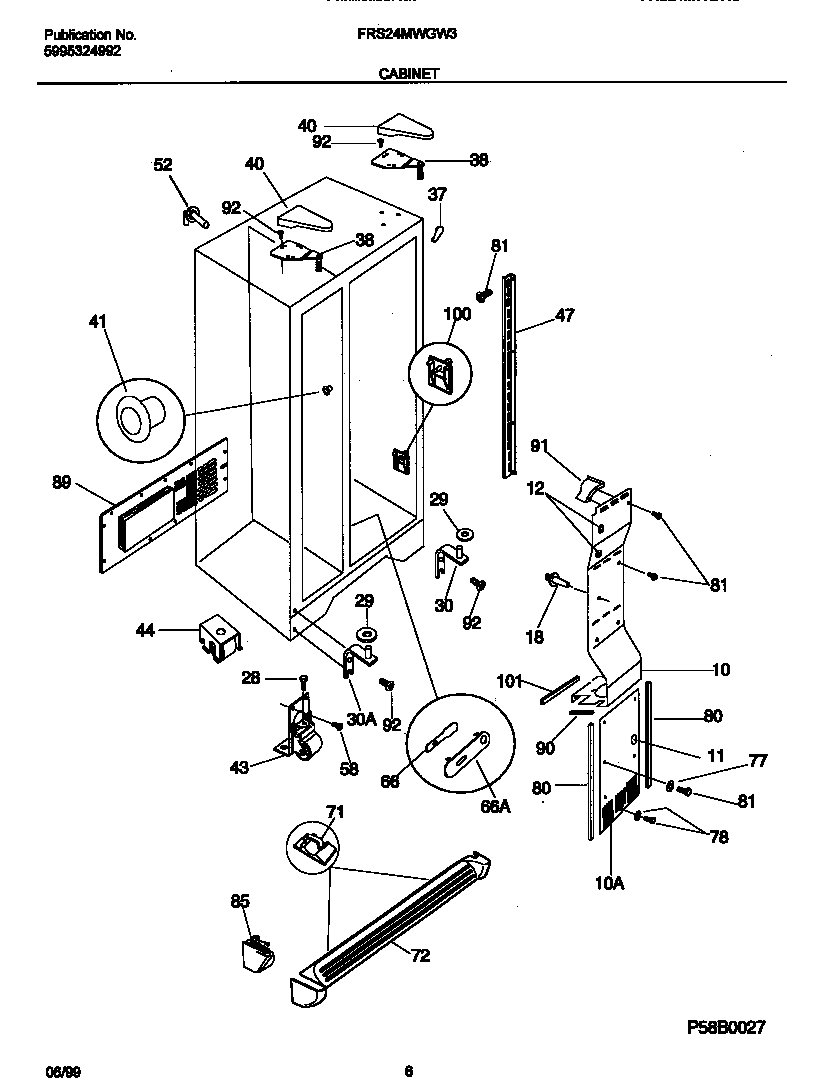

FRS24MWGW3 04 – CABINET

FRS24MWGW3 04 – CABINET

Written by

in

FRS24MWGW3 04 – CABINET

Products

PositionProduct
*29888SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*29892WCI 218902101
*29886WCI 218730800
*29885WCI 218871201
*29889WCI 5303289036
*29884WCI 215598900
*29890WCI 5303289037
*29891WCI 5303322647
*29883SUPPORT-AIR DUCT CVR,1.83“ LONG
*29882NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*29894PLUG, BUTTON, CABINET LINER (NI)
*298935303321319 Frigidaire Refrigerator White Touch Up Paint
*298875304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 218730700
30WCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321081
38WCI 218215213
38BRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 218663103
101WCI 215305702
