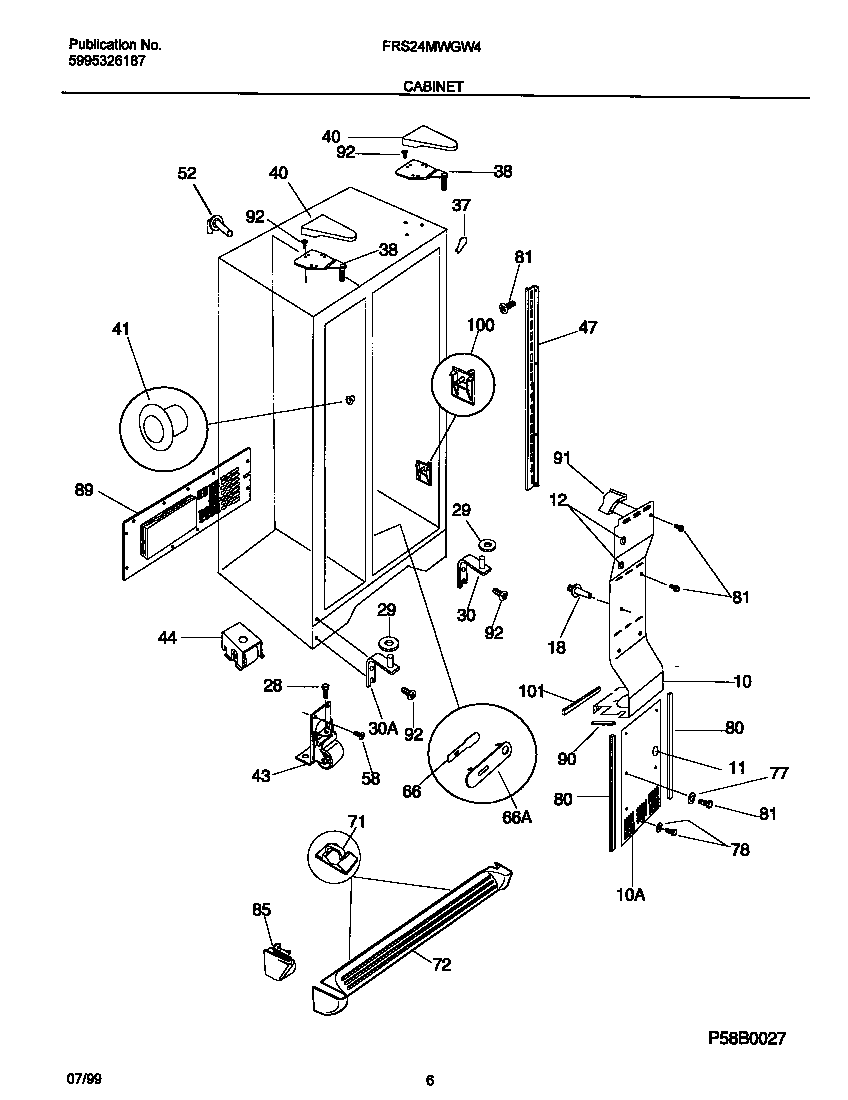

FRS24MWGW4 04 – CABINET

Products

PositionProduct
*26892WCI 5303322647
*26884SUPPORT-AIR DUCT CVR,1.83“ LONG
*26891WCI 5303289037
*26889SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*26886WCI 218871201
*26890WCI 5303289036
*26885WCI 215598900
*26887WCI 218730800
*26893WCI 218902101
*26883NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*26895PLUG, BUTTON, CABINET LINER (NI)
*268885304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*268945303321319 Frigidaire Refrigerator White Touch Up Paint
10WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
10WCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 218730700
37WCI 5303321081
38WCI 218215213
38BRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922705
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 218663103
101WCI 215305702
