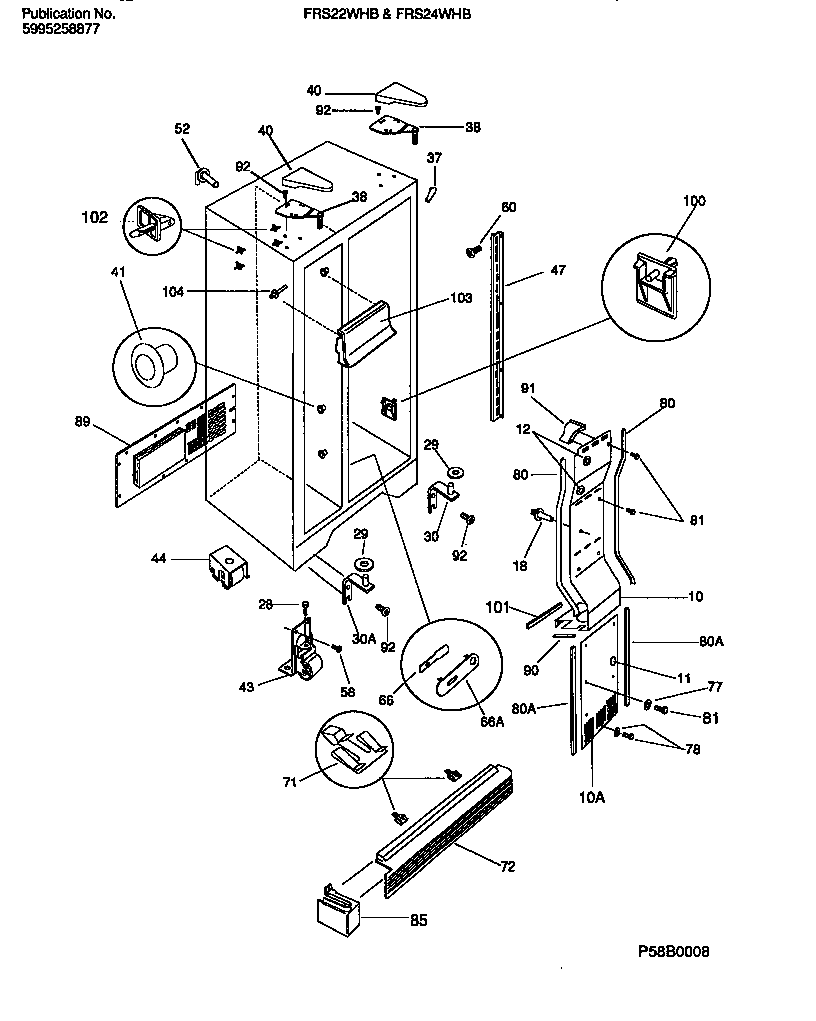

FRS24WHBD0 04 – CABINET, LIGHT SHIELDS, MULLION

Products

Position	Product
*93322	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*93323	TOUCH, UP PAINT, ALMOND (NI)
10A	WCI 215637400
10	WCI 5303297838
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
18	WCI 5303289043
18	SUPPORT-AIR DUCT CVR,1.83`` LONG
28	WCI 5303289062
29	WCI 215598900
29A	WCI 215003200
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30C	TAPPING PLATE, RH (NOT ILLUSTRATED)
30A	WCI 215009000
30B	TAPPING PLATE, LH (NOT ILLUSTRATED)
37	TRIM-CABINET CORNER, ALMOND
38	WCI 215595601
40	WCI 5303288946
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	WCI 5303289059
44	WCI 215163900
47	WCI 5303288974
52	WCI 5303289294
60	5304455852 Frigidaire Refrigerator Screw
66A	WCI 218171301
66	WCI 215050201
71A	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71	WCI 215003300
72	WCI 5303295758
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80A	WCI 218249801
80	WCI 218154003
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 215003803
89	WCI 215176300
90	WCI 215022602
91	WCI 215177600
92	241710601 Frigidaire Refrigerator Screw
100	SUPPORT-PAN COVER
101	WCI 215305702
102	SUPPORT, MOTOR BRKT, & SHELF
103	WCI 215413100
104	SUPPORT-ICE ACCESS DR
104A	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
