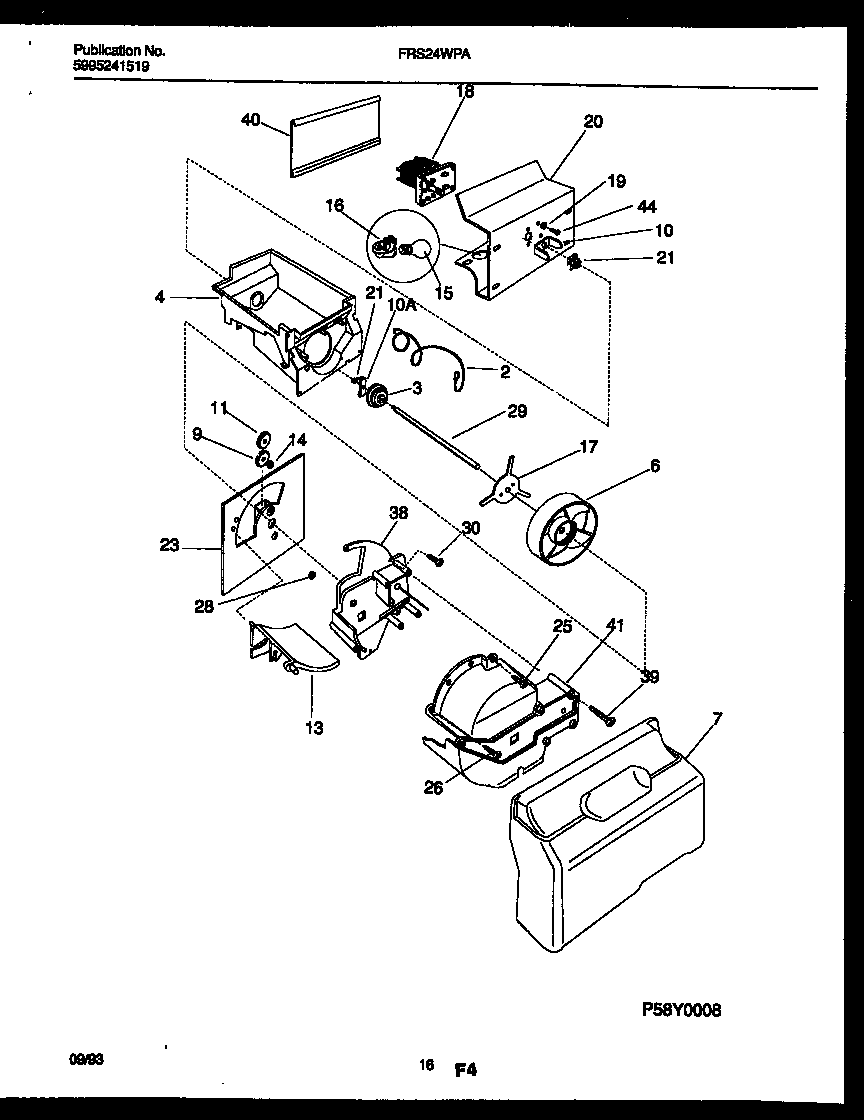

FRS24WPAD0 09 – ICE DISPENSER

Products

Position	Product
2	WCI 215419000
3	WCI 215419200
4	WCI 215417700
6	WCI 215752800
7	WCI 215421603
9	WCI 215419700
10	241726501 Frigidaire Refrigerator Drive Bar
10A	WCI 215757200
11	WCI 215755200
13	WCI 215420600
14	WCI 215419900
15	316538904 Frigidaire Oven Lamp Light
16	WCI 215767100
17	WCI 215754800
18A	WCI 215285500
18	5304462594 Frigidaire Refrigerator Motor-Auger
19	WCI 215771000
20	WCI 215258301
23B	STUD (NOT ILLUSTRATED)
23	WCI 215755300
23A	RING-RETAINER (NOT ILLUSTRATED)
25	WCI 215421400
26	215503203 Frigidaire Refrigerator Door Handle Screw
28	WCI 215755100
29	WCI 215757501
30	WCI 215757300
38	WCI 215756900
39	WCI 215757000
40	WCI 215363000
41	WCI 215756800
44	WCI 215285200
