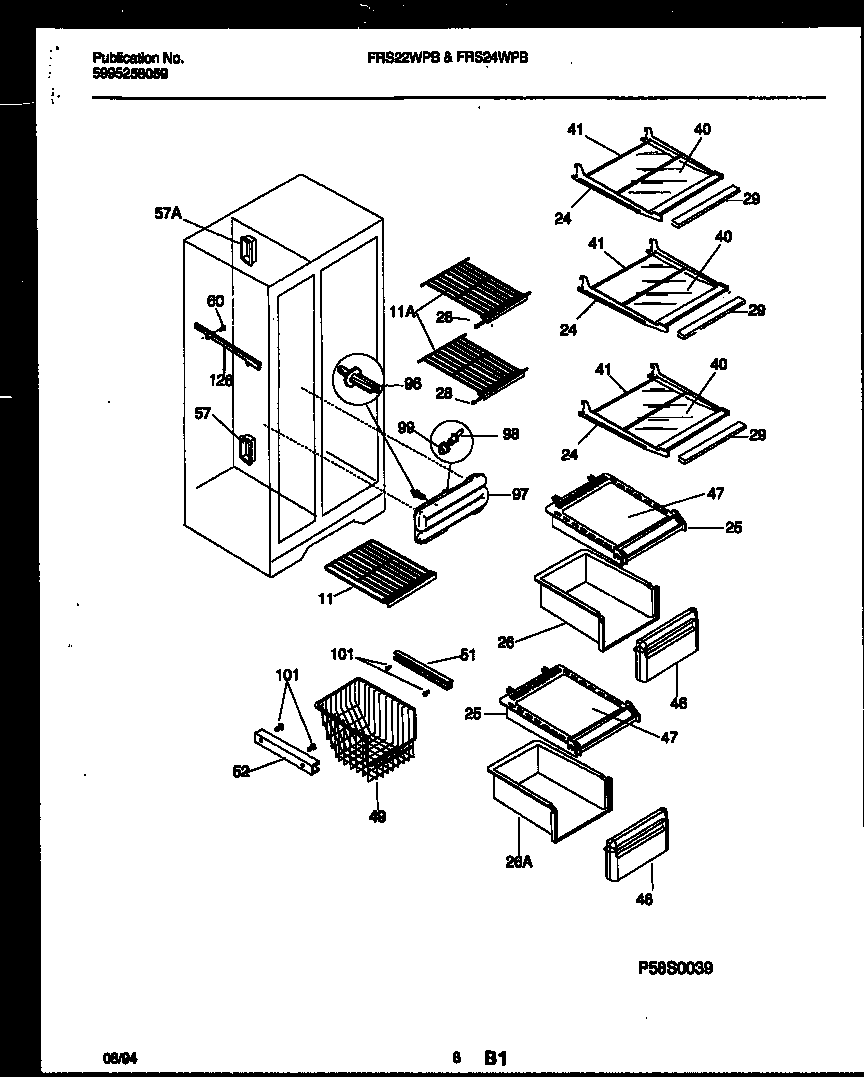

FRS24WPBD0 05 – SHELVES AND SUPPORTS

FRS24WPBD0 05 – SHELVES AND SUPPORTS

Written by

in

FRS24WPBD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*10872WCI 215339900
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
11ASHELF-FREEZER, FIXED WIRE
11WCI 5303296574
24WCI 215919139
25COVER-STORAGE PAN
25ATRIM-STORAGE PAN CVR,LOWER
265303289500 Frigidaire Refrigerator Upper Storage Pan
26A5303289501 Frigidaire Refrigerator Lower Storage Pan Os1
28END CAP-SHELF, PROTECTOR, LOWER FZR SHELF
29WCI 215919515
40WCI 5303300033
41WCI 215919815
46WCI 215042024
47WCI 5303289387
47AWCI 215530500
49WCI 5303296573
51WCI 5303296575
52215162502 Frigidaire Refrigerator Basket Hanger
57AWCI 5303289064
57WCI 5303271653
605304455852 Frigidaire Refrigerator Screw
96WCI 215192600
975303918258 Frigidaire Refrigerator P-1 Water Tank Kit
98CONNECTOR – TUBE
99GROMMET-TANK
1015304455650 Frigidaire Refrigerator Screw
126ARAIL-AUGER BUCKET, RH (NOT ILLUSTRATED)
126WCI 215205400
