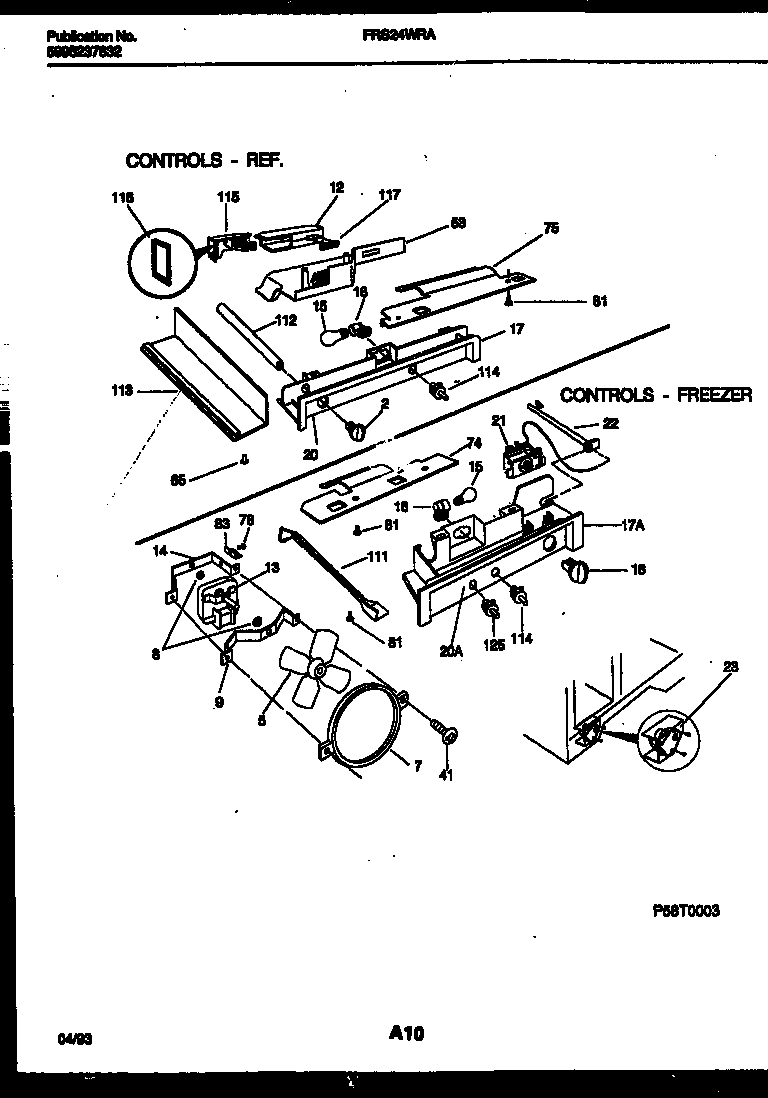

FRS24WRAW1 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
2	WCI 5303289045
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
12	WCI 215011600
13	WCI 215348100
13A	215474201 Frigidaire Refrigerator Washer
14	BRACKET-MOTOR MTG, REAR
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17A	CONTROL BOX, FRZR
17	BOX - CONTROL, REFR
18	WCI 5303289054
20	WCI 5303289510
20A	WCI 5303296582
21	WCI 5303294323
22	WCI 3018891
23C	SHIELD-DEFROST TIMR,BTM
23A	COVER-DEFROST TIMER, TOP
23B	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
41	5308000039 Frigidaire Refrigerator Screw
41A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
53	WCI 215177800
53A	WCI 215267300
65	WCI 215010800
74	WCI 5303289516
75	WCI 5303289052
78	5304455651 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
111	WCI 5303297842
112	WCI 215277102
113	COVER - DMPR ROD EXT
114	5303289051 Frigidaire Refrigerator Light Switch
115	WCI 215011501
116	WCI 215011400
117	WCI 215011700
125	WCI 215334201
