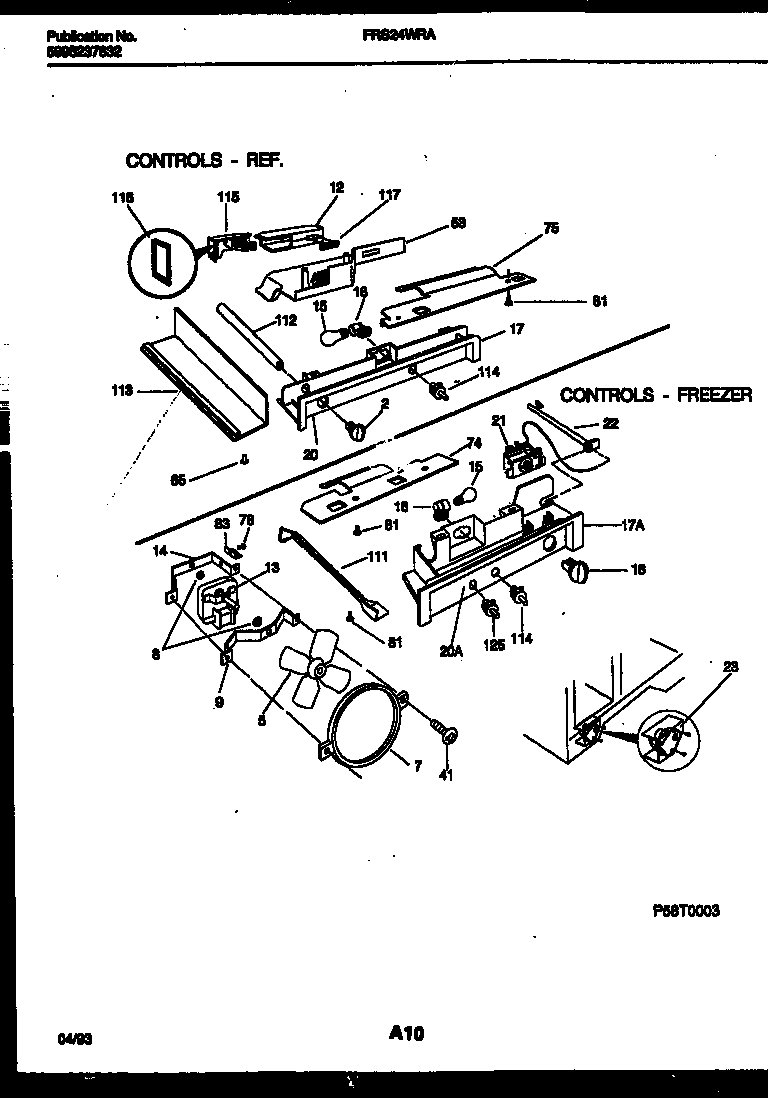

FRS24WRAW2 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

FRS24WRAW2 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

FRS24WRAW2 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
2WCI 5303289045
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215011600
13WCI 215348100
13A215474201 Frigidaire Refrigerator Washer
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17ACONTROL BOX, FRZR
17BOX – CONTROL, REFR
18WCI 5303289054
20WCI 5303289510
20AWCI 5303296582
21WCI 5303294323
22WCI 3018891
23CSHIELD-DEFROST TIMR,BTM
23ACOVER-DEFROST TIMER, TOP
23B5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
41ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
53WCI 215177800
53AWCI 215267300
65WCI 215010800
74WCI 5303289516
75WCI 5303289052
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
112WCI 215277102
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011501
116WCI 215011400
117WCI 215011700
125WCI 215334201
