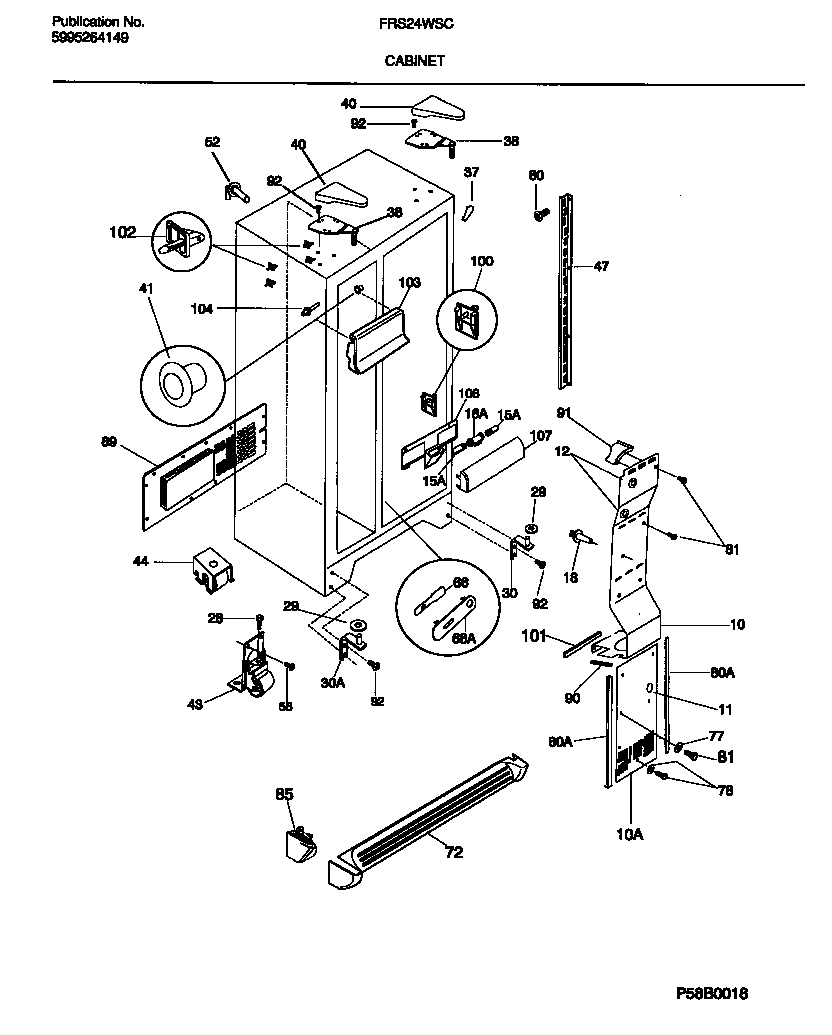

FRS24WSCB0 04 – CABINET

Products

Position	Product
*40009	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
*40008	CLIP-CABLE
*40007	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10	WCI 215637602
10	WCI 215637400
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
15	WCI 218188900
16	WCI 5303299157
18	WCI 5303289043
18	SUPPORT-AIR DUCT CVR,1.83“ LONG
28	WCI 5303289062
29	WCI 215598900
29	WCI 215003200
30	TAPPING PLATE, RH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30	WCI 215009000
30	TAPPING PLATE, LH (NOT ILLUSTRATED)
37	WCI 5303272428
38	WCI 218215202
40	WCI 218374403
41	5304509705 Frigidaire Refrigerator Grommet
41	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
43	WCI 5303289059
43	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44	WCI 215163900
47	WCI 5303288974
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
60	5304455852 Frigidaire Refrigerator Screw
66	WCI 215050201
66	WCI 218171301
72	WCI 218359609
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218249801
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 218359805
89	WCI 215176300
90	WCI 215022602
91	WCI 215177600
92	241710601 Frigidaire Refrigerator Screw
100	SUPPORT-PAN COVER
101	WCI 215305702
102	SUPPORT, MOTOR BRKT, & SHELF
103	WCI 218368301
104	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104	SUPPORT-ICE ACCESS DR
107	WCI 218188800
108	WCI 218476800
