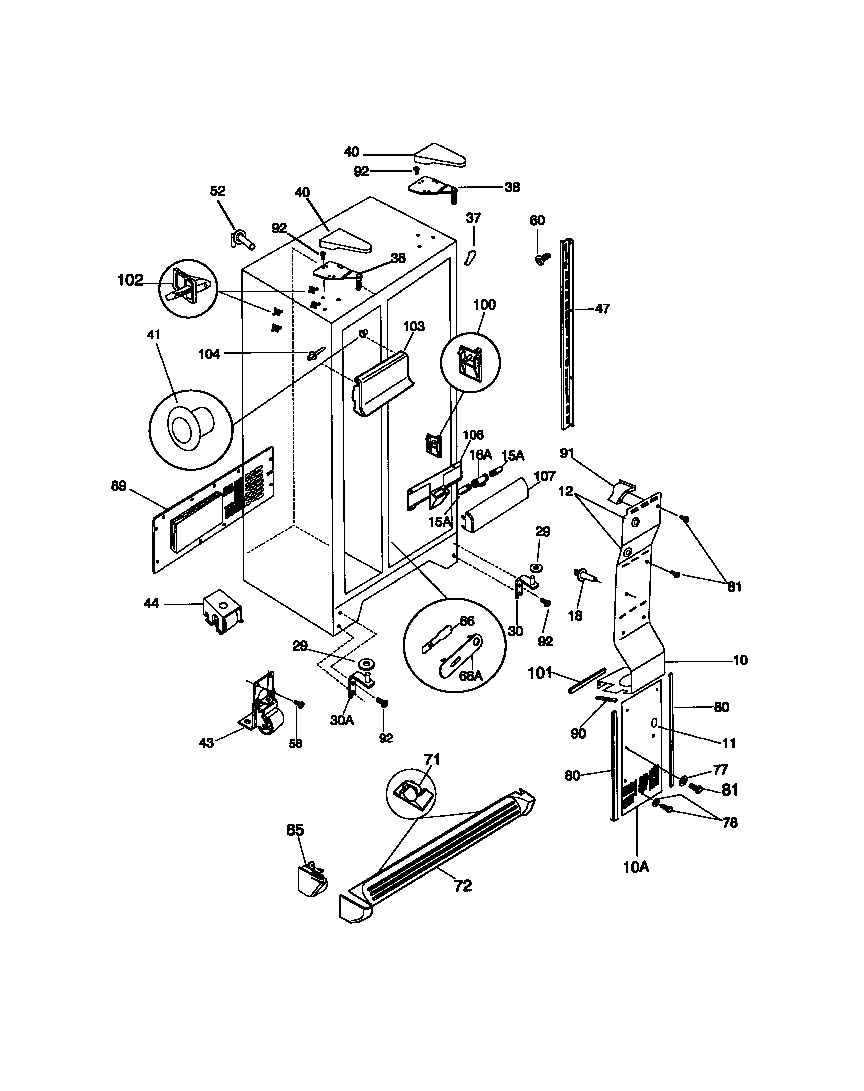

FRS24WSCB1 04 – CABINET

FRS24WSCB1 04 – CABINET

Written by

in

FRS24WSCB1 04 – CABINET

Products

PositionProduct
*004465303321321 Frigidaire Refrigerator Black Touch-Up Paint
10WCI 215637400
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218188900
16WCI 5303299157
18WCI 5303289043
18SUPPORT-AIR DUCT CVR,1.83“ LONG
29WCI 215598900
29WCI 215003200
30TAPPING PLATE, RH (NOT ILLUSTRATED)
30TAPPING PLATE, LH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 215009000
37WCI 5303272428
38WCI 218215202
40WCI 218374403
415304509705 Frigidaire Refrigerator Grommet
43WCI 5303289062
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 218615300
44WCI 215163900
47WCI 5303288974
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
78WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
80WCI 218249801
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 218368301
104SUPPORT-ICE ACCESS DR
107WCI 218188800
108WCI 218476800
