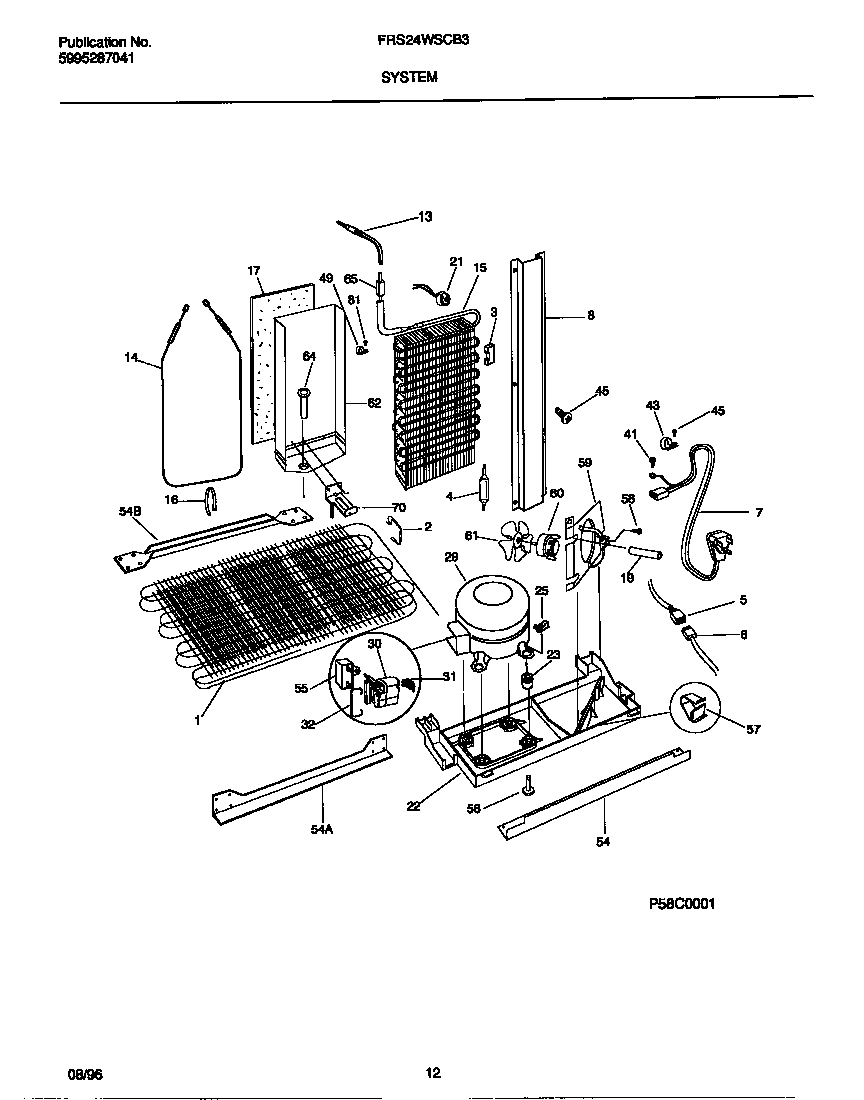

FRS24WSCB3 07 – SYSTEM

Products

Position	Product
*05571	WCI 5303917166
1	WCI 215408100
1	SPACER TUBE
1	SPACER-COND TUBE,BLACK
2	WCI 5303289029
3	WCI 218679601
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WIRING HARNESS,REFR CONTROLS
5	HARNESS-WIRING, FRZR CONTROLS (NON-ILLUSTRATED)
5	WCI 218463600
5	WCI 218646100
5	WIRING HARNESS,FILTER HEATER
6	WCI 218646200
7	WCI 215459201
8	WCI 5303289033
13	WCI 215746800
14	218169802 Frigidaire Refrigerator Defrost Heater
15	WCI 218691301
15	TUBE-INLET (NOT ILLUSTRATED)
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303289496
19	WCI 218631200
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5303289030
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 215014200
29	5304475102 Frigidaire Refrigerator Compressor Kit
30	WCI 216008900
31	WCI 5303308603
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
43	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
45	5304455852 Frigidaire Refrigerator Screw
49	WCI 215506900
54	WCI 5303289292
54	WCI 5303289311
54	WCI 5303289027
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 215014100
57	WCI 218247300
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5303289031
60	WCI 215501901
61	WCI 215004800
61	WCI 215004700
61	WCI 5303289032
62	WCI 215048701
64	241957901 Frigidaire Refrigerator Tube-Drain
65	WCI 5303289301
70	WCI 5303289041
81	5304455650 Frigidaire Refrigerator Screw
