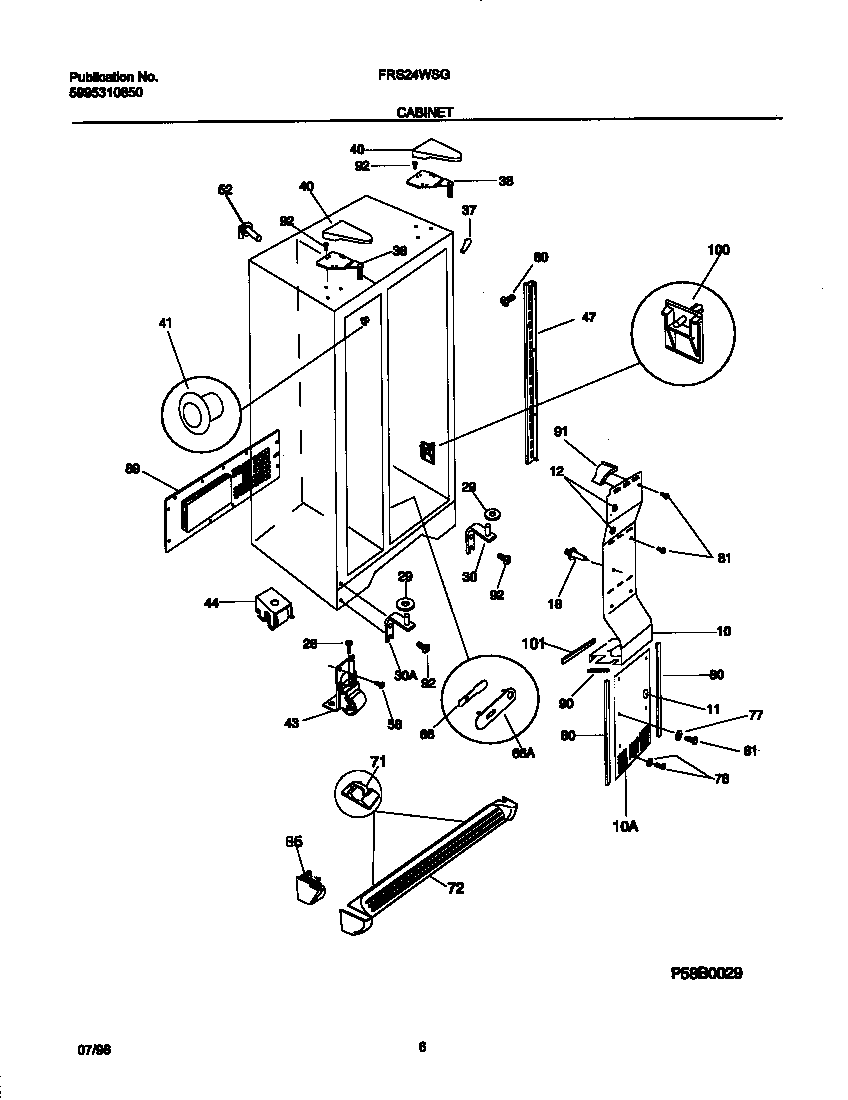

FRS24WSGD0 04 – CABINET

FRS24WSGD0 04 – CABINET

Written by

in

FRS24WSGD0 04 – CABINET

Products

PositionProduct
*03693PLUG, BUTTON, CABINET LINER (NI)
*03690WCI 5303322647
*03691TOUCH, UP PAINT, ALMOND (NI)
*03689WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*03688SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*03683SUPPORT-AIR DUCT CVR,1.83“ LONG
*03687WCI 5303289062
*03684WCI 218730800
*036865304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*03685WCI 218730900
10WCI 215637400
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
29CWCI 215598900
29BWCI 215314300
29AWCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
30BWCI 218730700
37WCI 5303321082
38AWCI 218215221
38BWCI 218215223
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359803
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
