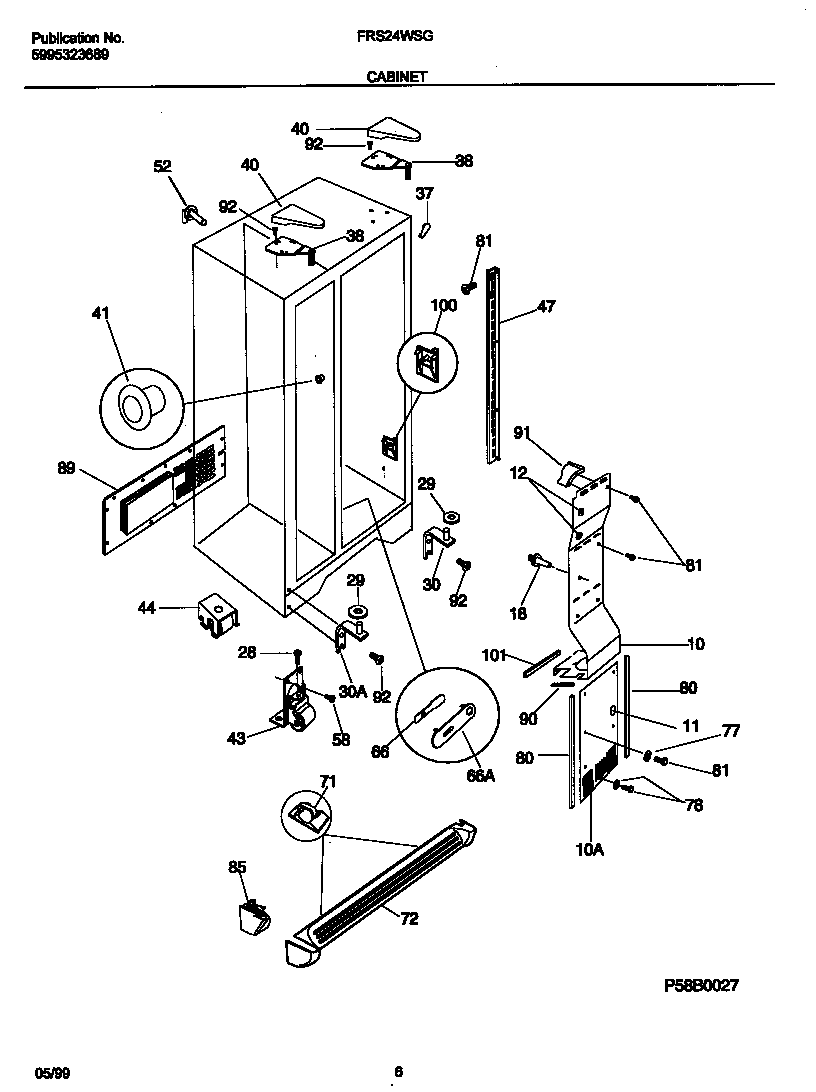

FRS24WSGD3 04 – CABINET

FRS24WSGD3 04 – CABINET

Written by

in

FRS24WSGD3 04 – CABINET

Products

PositionProduct
*80648SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*80645WCI 218871201
*80652WCI 218902101
*80649WCI 5303289036
*80646WCI 218730800
*80650WCI 5303289037
*80644WCI 215598900
*80651WCI 5303322647
*80643SUPPORT-AIR DUCT CVR,1.83“ LONG
*80655PLUG, BUTTON, CABINET LINER (NI)
*80654TOUCH, UP PAINT, ALMOND (NI)
*80642WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*806475304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 215637401
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30AWCI 215009000
30BWCI 218730700
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321082
38AWCI 218215221
38BWCI 218215223
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359803
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
