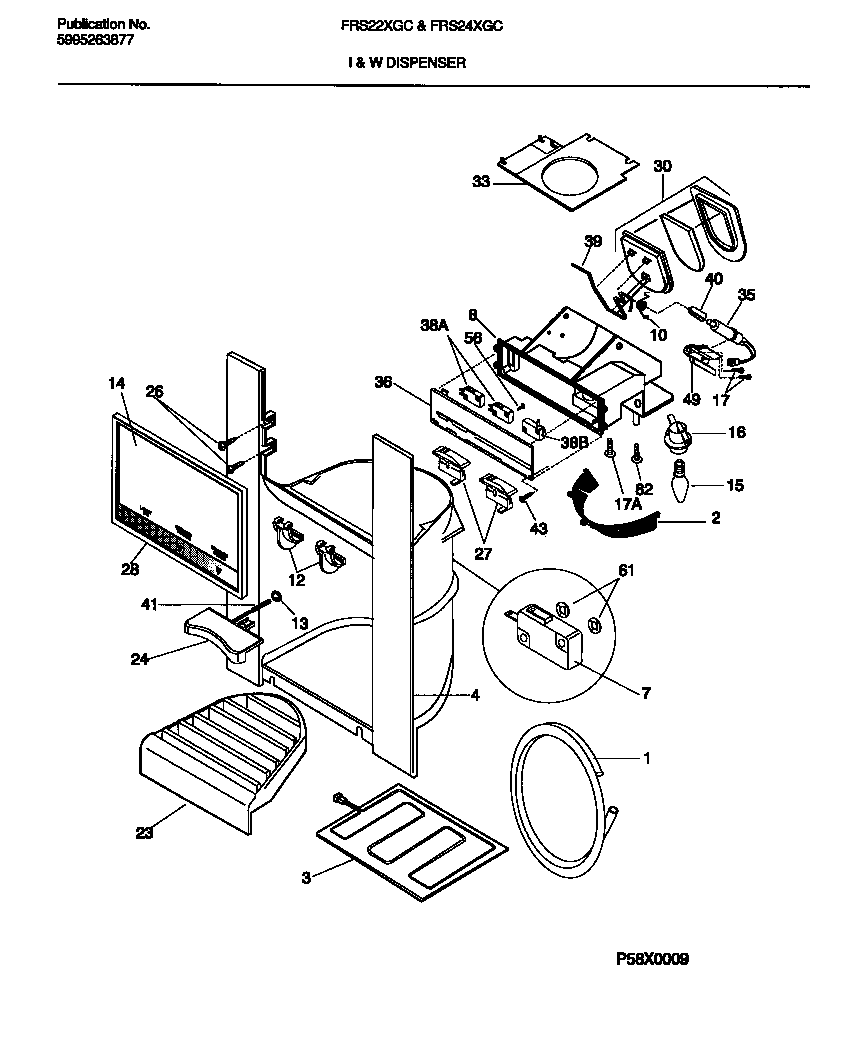

FRS24XGCB0 08 – ICE AND WATER DISPENSER

Products

Position	Product
*68693	WCI 215781700
*68694	WCI 218432501
1B	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
1A	WCI 215294101
2	WCI 215732118
3	WCI 215484300
4	WCI 218432103
7B	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
7A	WCI 218284800
8	WCI 218432301
10	WCI 218209800
12	WCI 215766503
13	WCI 215748101
14	WCI 218408403
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215794400
17A	WCI 215840700
17B	WASHER-FLAT
23	WCI 5303299660
24	WCI 215766303
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 218432600
28	DOVER, MODULE, BLACK
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218379901
35	WCI 218284700
36	WCI 218432400
38	WCI 218480000
38	WCI 218479900
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
43	WCI 215760300
49	WCI 215794000
56	WCI 218434300
61	WCI 215766000
82	WCI 215296300
