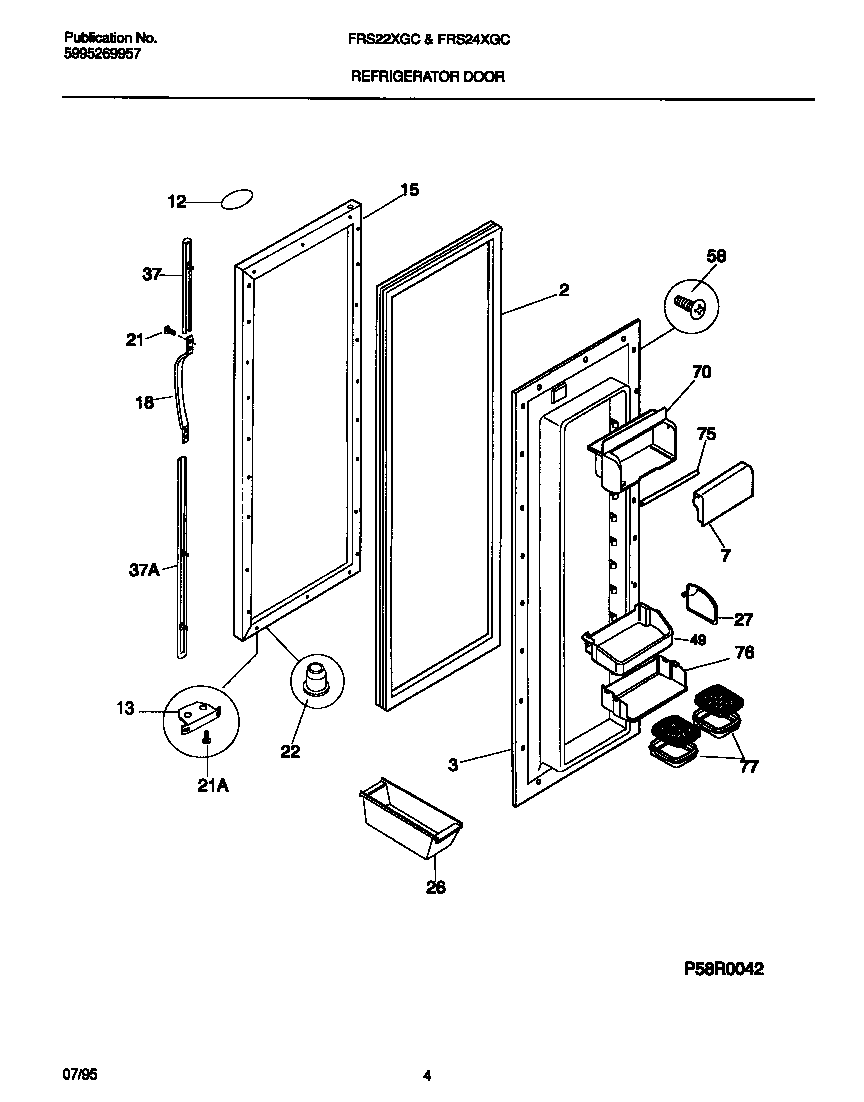

FRS24XGCB1 03 – REFRIGERATOR DOOR

FRS24XGCB1 03 – REFRIGERATOR DOOR

Written by

in

FRS24XGCB1 03 – REFRIGERATOR DOOR

Products

PositionProduct
*35241INSULATION
2WCI 215734324
3WCI 215353101
7WCI 218383101
12AWCI 215008606
12WCI 218364006
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
15WCI 5303917510
18WCI 218025205
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
37WCI 215867033
37BWCI 215782300
37AWCI 215867030
49WCI 218592307
585304455651 Frigidaire Refrigerator Screw
70WCI 218383201
75WCI 218431100
76WCI 218423700
77WCI 218423501
