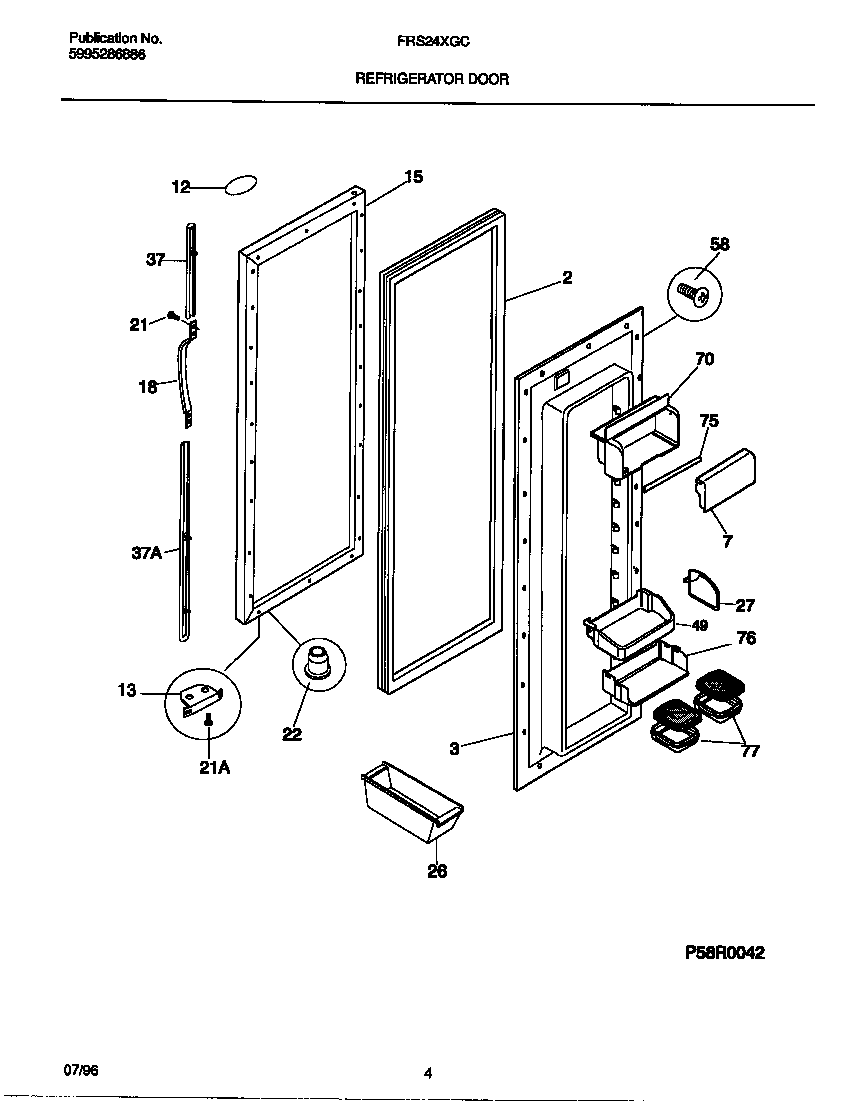

FRS24XGCD3 03 – REFRIGERATOR DOOR

FRS24XGCD3 03 – REFRIGERATOR DOOR

Written by

in

FRS24XGCD3 03 – REFRIGERATOR DOOR

Products

PositionProduct
*58168INSULATION
*58167WCI 218676002
*58166WCI 215940700
*58165WCI 215782300
2WCI 215734304
3WCI 215353101
7WCI 218383101
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218364005
12LABEL-NAMEPLATE,ALMOND
13WCI 5303289522
15WCI 5303917499
18WCI 218025204
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
37TRIM-HANDLE,ALMOND ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37TRIM-HANDLE,ALMOND ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCK
49WCI 218592307
58216858001 Frigidaire Refrigerator Screw
70WCI 218383201
75WCI 218431100
76WCI 218423700
77WCI 218423501
