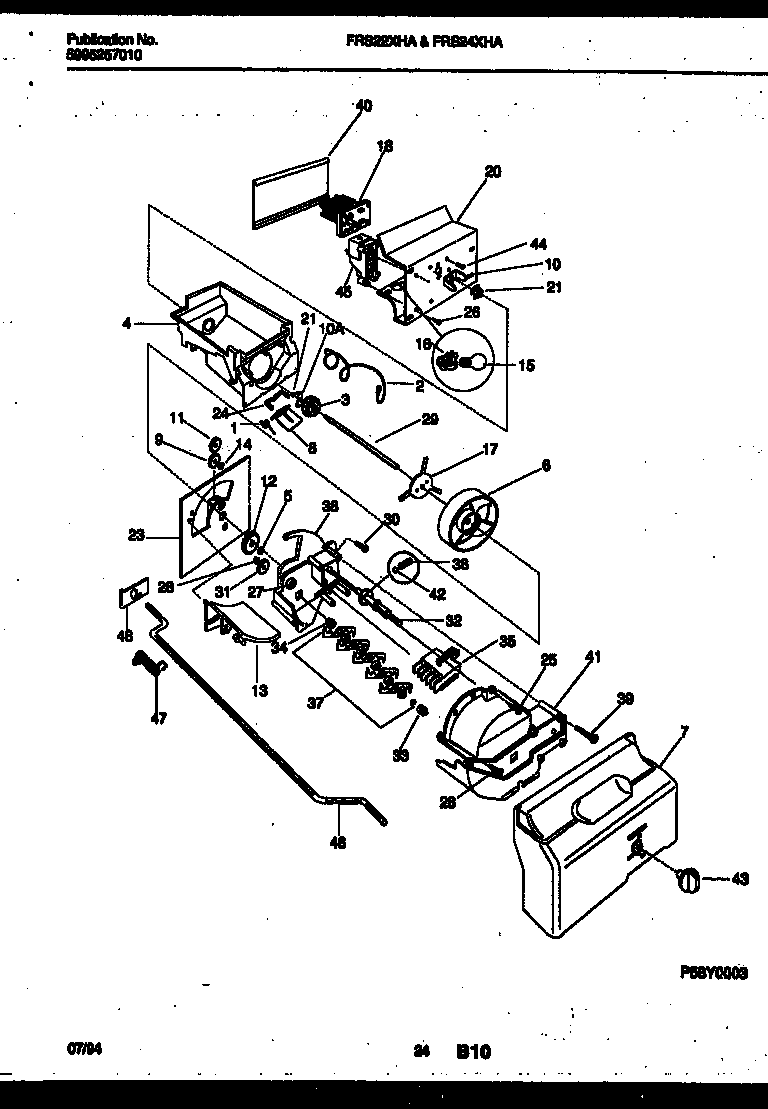

FRS24XHAD1 13 – ICE DISPENSER

Products

Position	Product
1	WCI 215571300
2	WCI 218232500
3	WCI 218232300
4A	WCI 218270500
4	WCI 218216800
5	WCI 215748105
6	WCI 215752800
7	WCI 215421601
8	WCI 215571200
9	WCI 215419700
10A	WCI 218232800
10	241726501 Frigidaire Refrigerator Drive Bar
11	WCI 215755200
12	WCI 215420400
13	WCI 218270300
14	WCI 215419900
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17	WCI 215754800
18	5304462594 Frigidaire Refrigerator Motor-Auger
18A	WCI 218231600
20	WCI 215285302
23B	STUD (NOT ILLUSTRATED)
23A	RING-RETAINER (NOT ILLUSTRATED)
23	WCI 215755300
24	WCI 215571400
25	WCI 215421400
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215748400
28	WCI 215755100
29	WCI 215757501
30	WCI 215757300
31	WCI 215757400
32A	RING-SNAP (NOT ILLUSTRATED)
32	WCI 215747501
33	WCI 215748200
34	WCI 215748300
35	WCI 215753500
36	WCI 215756700
37B	SHAFT-CRUSHER (NOT ILLUSTRATED)
37A	BLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED)
37A	BLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED)
37A	BLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED)
37	WCI 215756100
37A	BLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED)
37A	BLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED)
