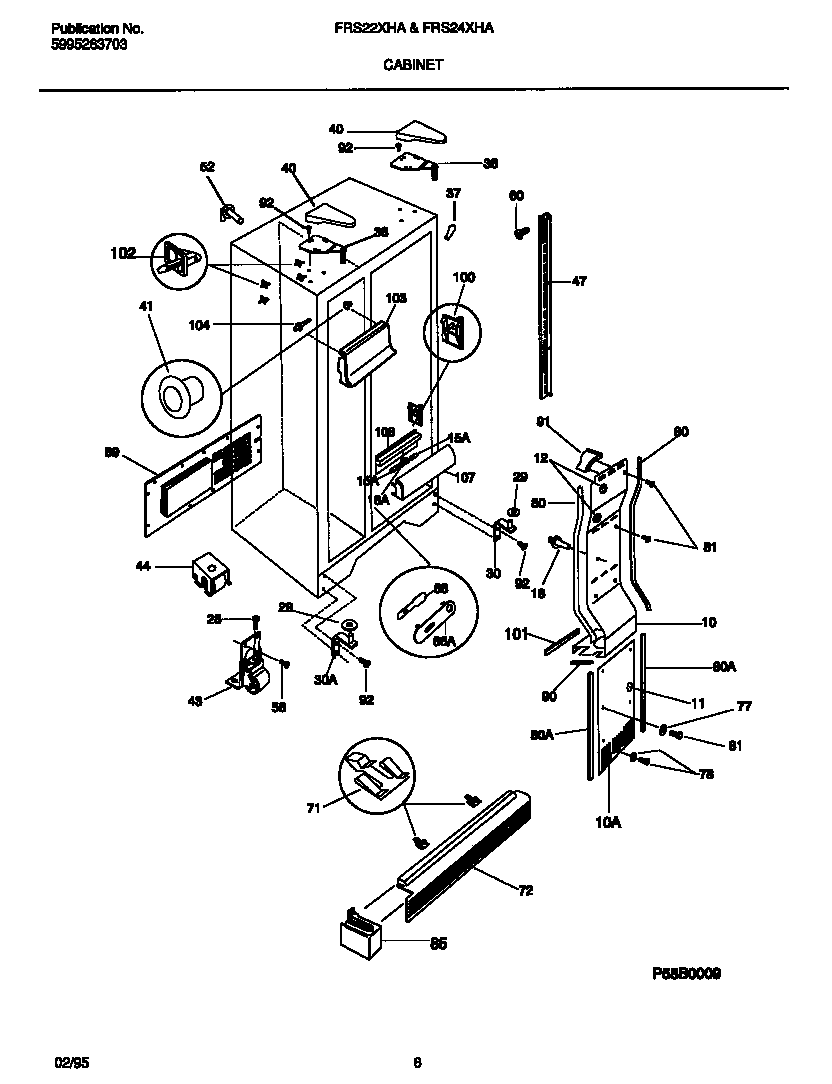

FRS24XHAD2 04 – CABINET

FRS24XHAD2 04 – CABINET

Written by

in

FRS24XHAD2 04 – CABINET

Products

PositionProduct
*37093WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*37083TOUCH, UP PAINT, ALMOND (NI)
10AWCI 215637400
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15AWCI 218188900
16AWCI 5303299157
18SUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
29WCI 215598900
30AWCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30TAPPING PLATE, RH (NOT ILLUSTRATED)
30TAPPING PLATE, LH (NOT ILLUSTRATED)
37TRIM-CABINET CORNER, ALMOND
38BRACKET, UPPER HINGE, W/CLOSER, WHITE
40WCI 5303288946
415304509705 Frigidaire Refrigerator Grommet
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 5303289059
44WCI 215163900
47WCI 5303288974
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66AWCI 218171301
66WCI 215050201
71WCI 215003300
71SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 5303295758
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218154003
80AWCI 218249801
815304455650 Frigidaire Refrigerator Screw
85WCI 215003803
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 215413100
104SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104SUPPORT-ICE ACCESS DR
107WCI 218188800
108WCI 215171800
