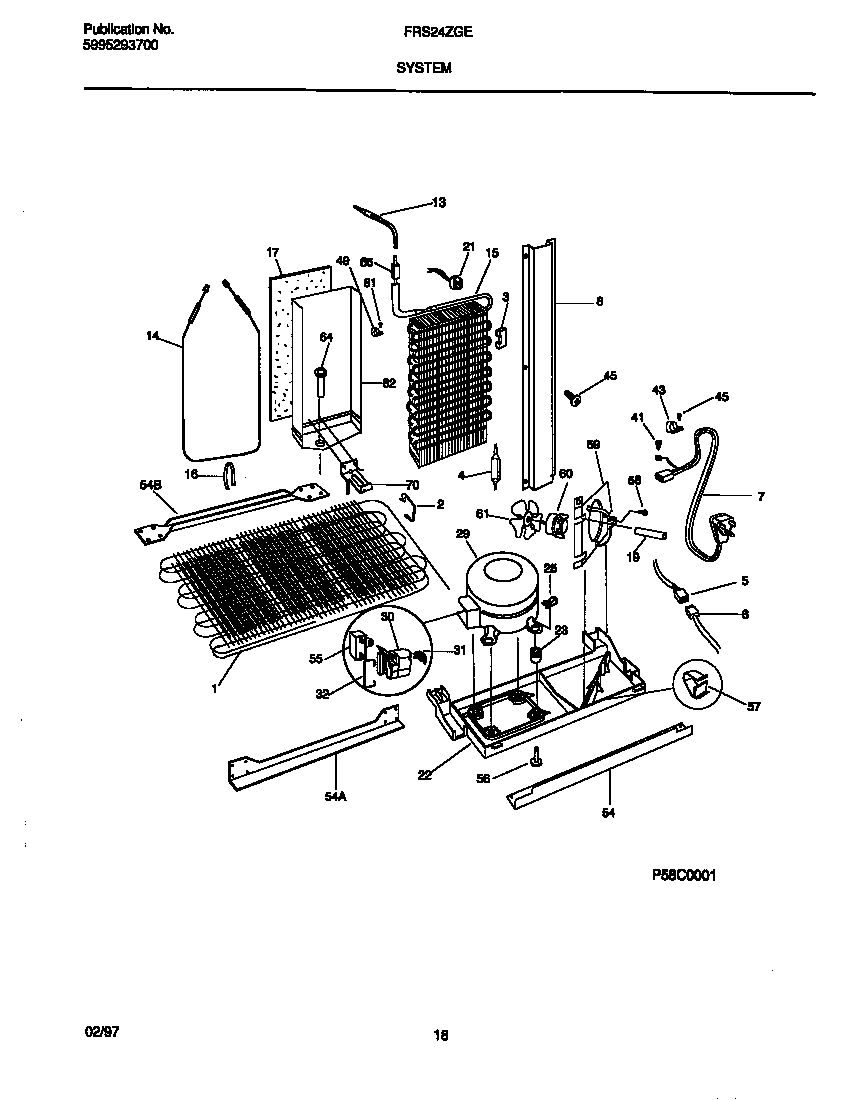

FRS24ZGED2 07 – SYSTEM

Products

PositionProduct
*67014WCI 5303917166
1BSPACER TUBE
1AWCI 218787900
2WCI 5303289029
3WCI 218679602
45303305677 Frigidaire Replacement Filter Dryer Filters
5CWIRING HARNESS,REFR CONTROLS
5BHARNESS-WIRING, FRZR CONTROLS (NON-ILLUSTRATED)
5EWIRING HARNESS,FILTER HEATER
5DWCI 218463600
5AWCI 218646100
6WIRING HARNESS,MACHINE COMPT
7WCI 215459201
8WCI 5303289033
13WCI 215746800
14218169802 Frigidaire Refrigerator Defrost Heater
15BTUBE-INLET (NOT ILLUSTRATED)
15AWCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29WCI 5303917933
30WCI 216008903
31WCI 5303322093
32218762900 Frigidaire CLAMP
415308000039 Frigidaire Refrigerator Screw
43C5308000133 Frigidaire Refrigerator Clamp
43A5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45D5304455852 Frigidaire Refrigerator Screw
45CWCI 218769200
45A5304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289311
54WCI 5303289292
54WCI 5303289027
55CAPACITOR-RUN,210-230 VAC ,15 MICROFARAD
56WCI 215014100
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61AWCI 5303289032
61BWCI 215004700
61CWCI 215004800
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
