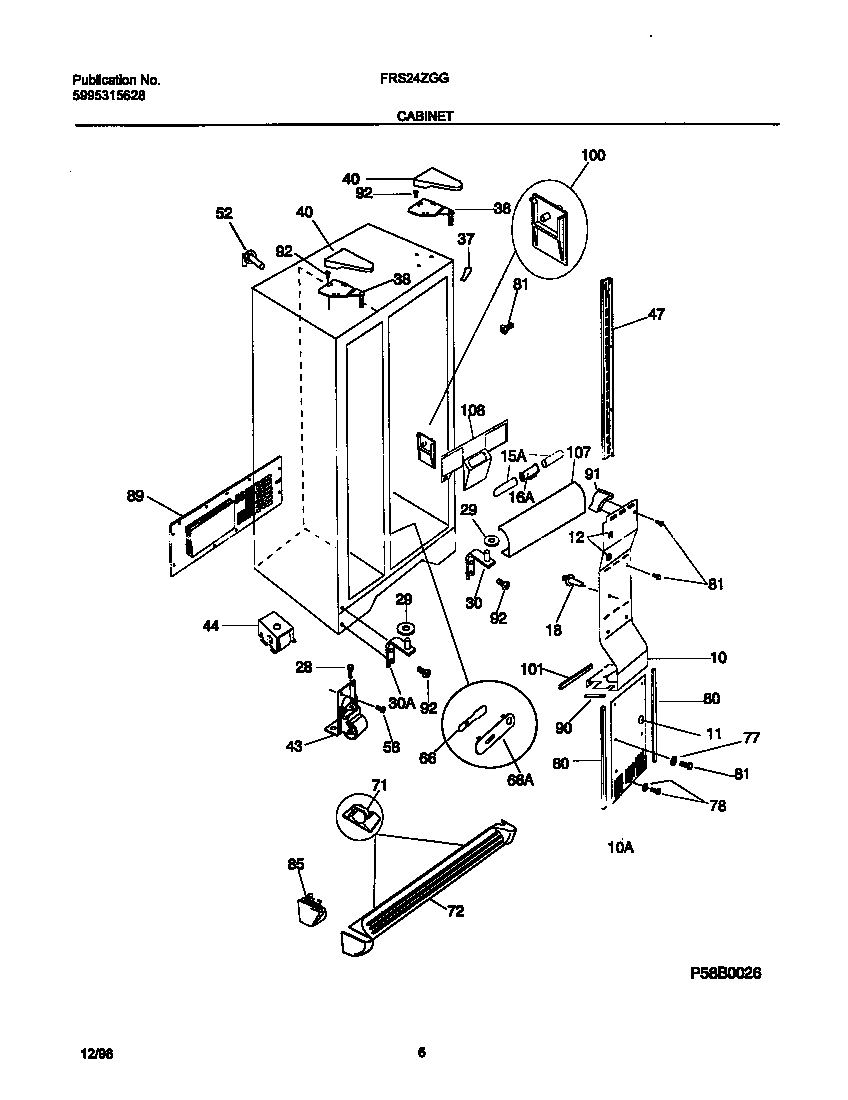

FRS24ZGGB3 04 – CABINET

Products

PositionProduct
*176605303321321 Frigidaire Refrigerator Black Touch-Up Paint
*17653WCI 218871201
*17655WCI 218730800
*17657WCI 5303289036
*17659WCI 215598900
*17656SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*17658WCI 5303322647
*17652SUPPORT-AIR DUCT CVR,1.83“ LONG
*17651NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*17663PLUG, BUTTON, CABINET LINER (NI)
*17654WCI 218730700
10WCI 215637602
10WCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 215009000
37WCI 5303321083
38AWCI 218215214
38BWCI 218215216
40WCI 5303323268
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
107WCI 218835901
108WCI 218834202
