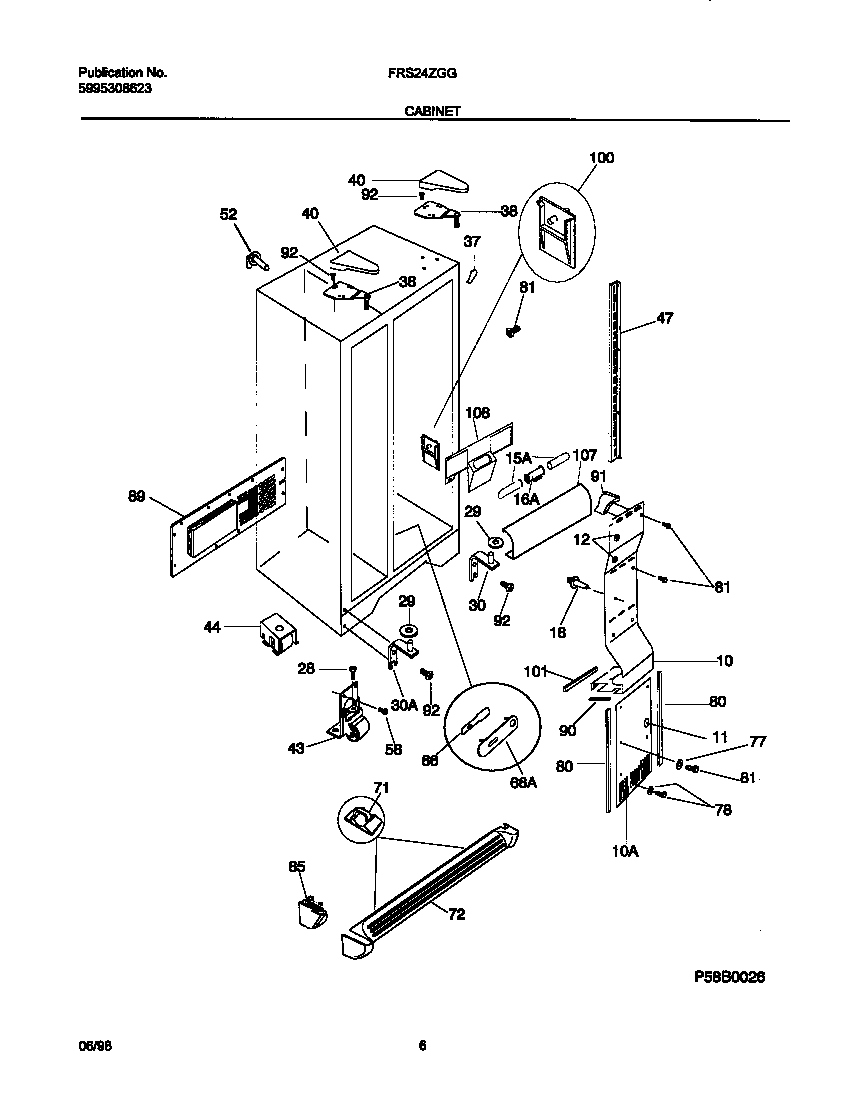

FRS24ZGGD2 04 – CABINET

FRS24ZGGD2 04 – CABINET

Written by

in

FRS24ZGGD2 04 – CABINET

Products

PositionProduct
*95542PLUG, BUTTON, CABINET LINER (NI)
*95538WASHER, .28 X .62 X .19, NYLON
*95536WCI 215598900
*95532WCI 218871201
*95534WCI 218730800
*95535SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*95537WCI 5303322647
*95531SUPPORT-AIR DUCT CVR,1.83“ LONG
*95530NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*95540TOUCH, UP PAINT, ALMOND (NI)
*95533WCI 218730700
10WCI 215637602
10WCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29AWCI 215003200
29BWCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 215009000
37WCI 5303321082
38BWCI 218215223
38AWCI 218215221
40WCI 218374408
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359803
89WCI 215176300
90WCI 215022602
91WCI 218836401
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
107WCI 218188800
108WCI 218834202
