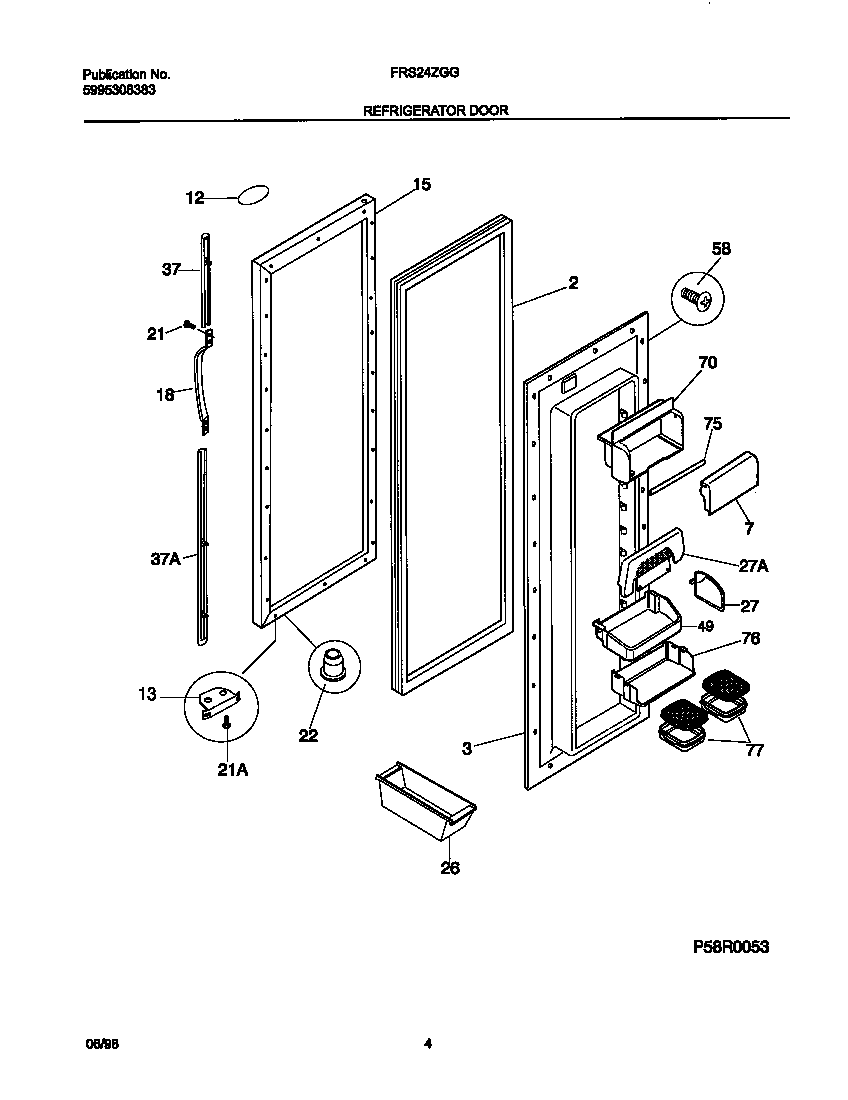

FRS24ZGGW0 03 – REFRIGERATOR DOOR

FRS24ZGGW0 03 – REFRIGERATOR DOOR

Written by

in

FRS24ZGGW0 03 – REFRIGERATOR DOOR

Products

PositionProduct
*32969INSULATION
*32965WCI 215008604
*32968WCI 215940700
*32966TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*32967WCI 215782300
2WCI 215734314
3WCI 215353101
7WCI 218383101
12WCI 218364004
13WCI 5303289522
15WCI 5303917498
18WCI 218025201
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
27WCI 218714201
37TRIM-HANDLE,WHITE ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37WCI 218676003
37TRIM-HANDLE,WHITE ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCKS
49WCI 218592307
58Screw,No.10 pan hd ,8-18 x .5
70WCI 218383201
75WCI 218431100
76WCI 218423700
77WCI 218423501
