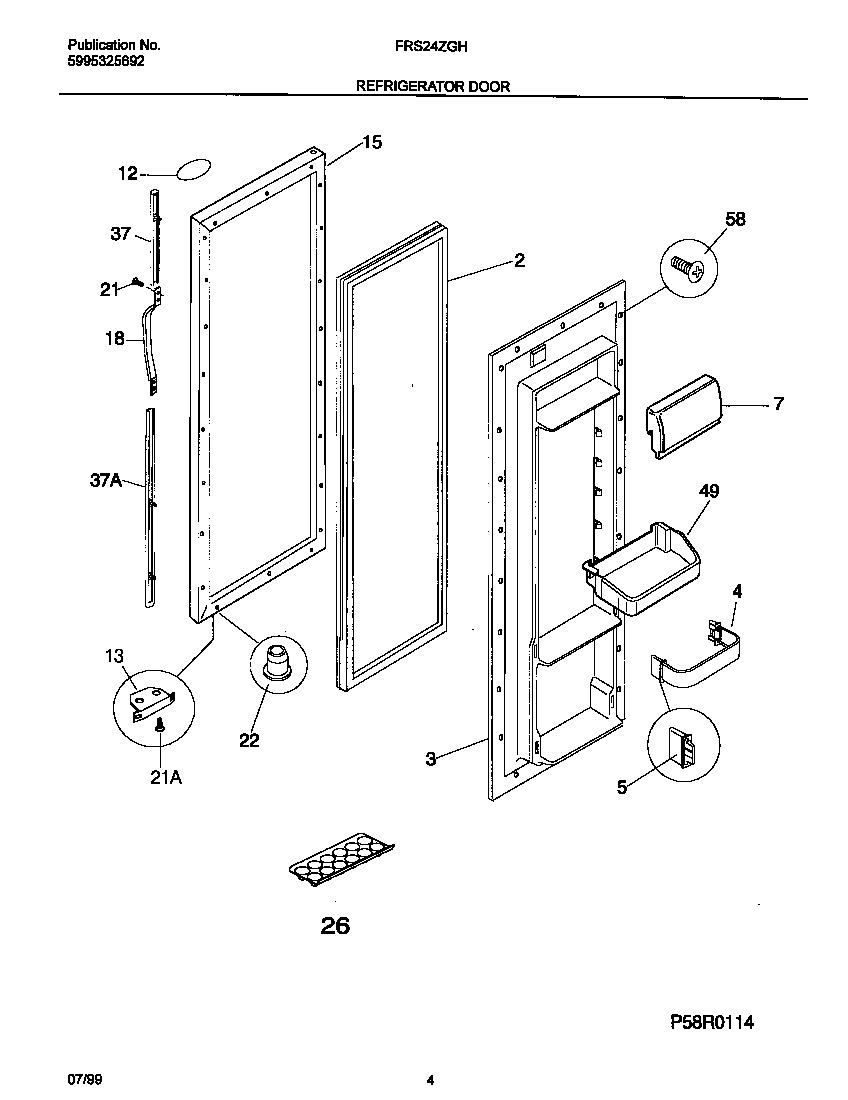

FRS24ZGHD2 03 – REFRIGERATOR DOOR

FRS24ZGHD2 03 – REFRIGERATOR DOOR

Written by

in

FRS24ZGHD2 03 – REFRIGERATOR DOOR

Products

PositionProduct
*50885INSULATION
*50882LABEL-NAMEPLATE,ALMOND
*50884TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
2WCI 215734304
3WCI 5303296572
4WCI 218807018
5WCI 5303288950
7WCI 5304404909
12WCI 218364005
13WCI 5303289522
15WCI 5303917499
18WCI 218025204
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26215817806 Frigidaire Refrigerator Egg Tray
37BWCI 215940700
37AWCI 215782300
37TRIM-HANDLE,ALMOND ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37CWCI 218676003
37TRIM-HANDLE,ALMOND ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCK
49WCI 218592307
58218781101 Frigidaire Handle Screw
